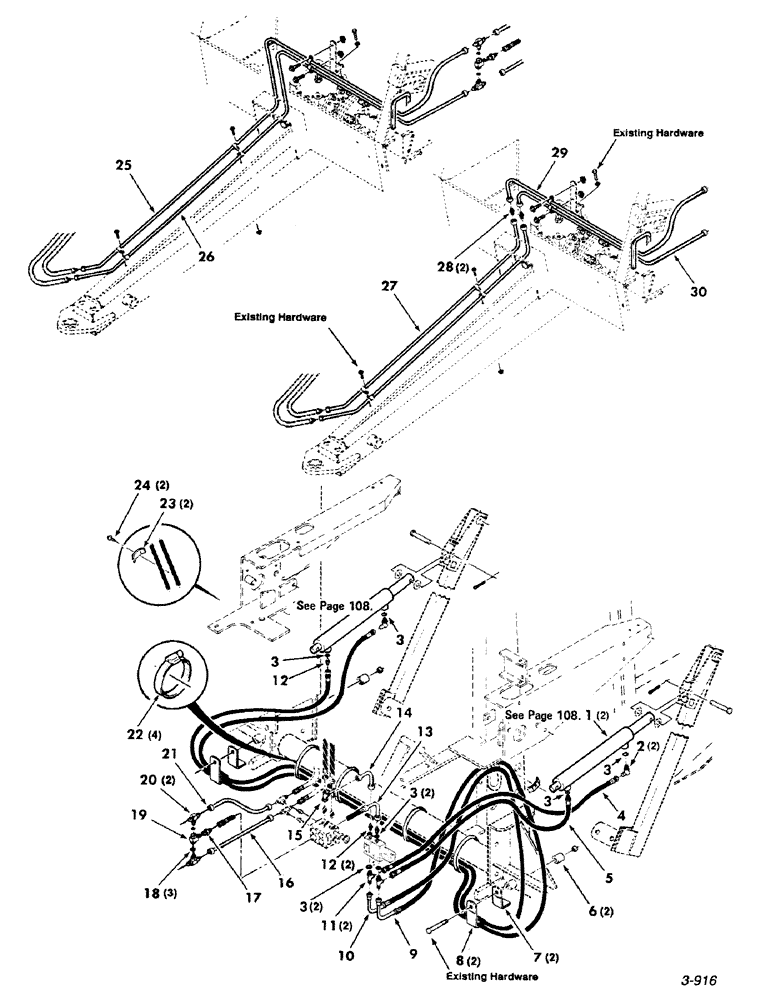

Запчасти Case IH 8450 (130) - KICKER EJECTOR, HYDRAULIC, ASSEMBLY (16) - BALE EJECTOR

1

700707262

CYLINDER

- Hydraulic

2шт.

2

7746555

ELBOW

90 Degree Elbow (Includes O-Ring)

2шт.

3

738468

O-RING

8шт.

4

700708912

HYDRAULIC HOSE,9.65 mm ID x 950.00 mm, SAE 100R2

9.65 mm ID x 950.00 mm, SAE 100R2

1шт.

5

700708911

HYDRAULIC HOSE,9.65 mm ID x 721.00 mm, SAE 100R2

9.65 mm ID x 721.00 mm, SAE 100R2

1шт.

6

451542

SPACER

2шт.

7

700118981

CLAMP

- Hose

2шт.

8

700118982

CLAMP

- Hose

2шт.

9

700708910

HOSE

- Hydraulic

1шт.

10

700708908

HOSE

- Hydraulic

1шт.

11

8046658

TEE

(Includes O-Ring)

2шт.

12

846634

COUPLING, BREAK AWAY

Flared Connector (Includes O-Ring)

3шт.

13

700709382

HOSE

- Hydraulic

1шт.

14

700708906

LINE

- Hydraulic

1шт.

15

700701550

3 WAY CONNECTION

Tee - Swivel, Run

1шт.

16

700709341

LINE

- Hydraulic

1шт.

17

7746399

CONNECTOR, ELEC

Flared Connector (Includes O-Ring)

1шт.

18

7037781

O-RING

3шт.

19

700709343

VALVE

- Shuttle

1шт.

20

8046518

TEE

Bulkhead

2шт.

21

700709342

LINE

- Hydraulic

1шт.

22

700708576

CLAMP

- Hose

4шт.

23

6246995

CLAMP

- Line

2шт.

24

73528

SELF-TAP SCREW

3/8 x 1-1/2 HWHTCTS

2шт.

25

700709340

TUBE

Line - Hydraulic (Sub. 700709348 Line, 700709350 Line and 746024 Union)

1шт.

25

700709348

LINE

- Hydraulic, Front

1шт.

25

700709350

LINE

- Hydraulic, Side

1шт.

25

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

26

700709339

TUBE

Line - Hydraulic Sub. 700709348 Line, 700709349 Line and 746024 Union

1шт.

26

700709348

LINE

- Hydraulic, Front

1шт.

26

700709349

LINE

- Hydraulic, Side

1шт.

26

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

27

700709348

LINE

- Hydraulic

2шт.

28

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 Union

2шт.

29

700709350

LINE

- Hydraulic

1шт.

30

700709349

LINE

- Hydraulic

1шт.
