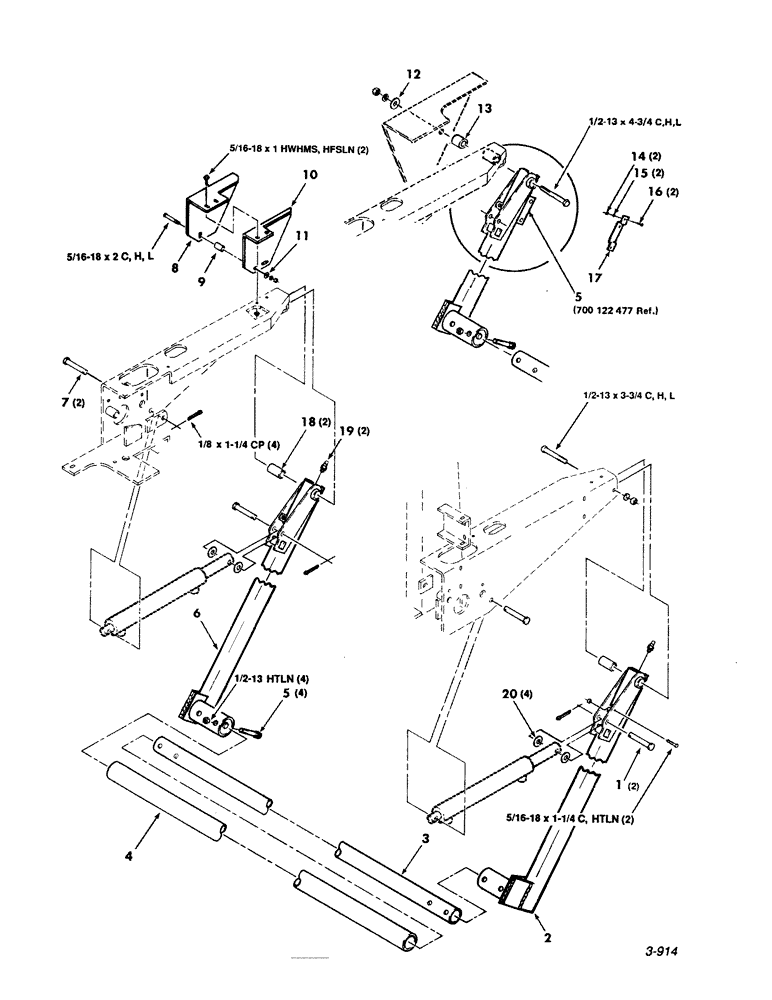

Запчасти Case IH 8450 (128) - KICKER EJECTOR ASSEMBLY (16) - BALE EJECTOR

HK50563

BALE CHAMBER

Kit - Bale Ejector, Complete (Includes Pages 128 thru 137)

1шт.

1

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8 x 2-1/2

2шт.

2

700118714

STRUT

- Kicker, Left

1шт.

3

700115818

TUBE,60.32 mm OD, 1484 mm Length

Pipe - Cross

1шт.

4

700119843

ROLLER

- Ejector

1шт.

5

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

1/2-13 x 3-1/4 HSHCS

4шт.

6

700118715

STRUT

- Kicker, Right (S.N. CFH0015001 thru 0015766) Sub. 700122477 Strut, 700122757 Support and No 6-32 x 3/4 CRPHMS, LHSN, P(2)

1шт.

6

700122477

STRUT

- Kicker, Right (S.N. CFH0015767 and on)

1шт.

7

763227

BRACKET

5/8 x 3 Clevis Pin

2шт.

8

700118987

SHIELD

- Switch (S.N. CFH0015001 thru 0015766)

1шт.

9

700107049

SPACER

(S.N. CFH0015001 thru 0015766)

1шт.

10

700118986

SUPPORT

- Switch (S.N. CFH0015001 thru 0015766)

1шт.

11

705525

WASHER

5/16 Hardened Plain Washer

1шт.

12

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 Hardened Plain Washer

1шт.

13

6181002

SPACER

1шт.

14

700710189

LOCK NUT

No. 6-32 x 3/4 LHSN - Stainless Steel (S.N. CFH0015767 and on)

2шт.

15

700710187

WASHER

No. 6 P - Stainless Steel (S.N. CFH0015767 and on)

2шт.

16

700710188

SCREW

No. 6-32 x 3/4 CRPHMS - Stainless Steel (S.N. CFH0015767 and on)

2шт.

17

700122574

SUPPORT

- Actuator (S.N. CFH0015767 and on)

1шт.

18

700115943

TUBE,25.4 mm OD, 61 mm Length

Bushing

2шт.

19

77032

FITTING

1/4-28 Zerk

2шт.

20

NLS

NO LONGER SERVICED

5/8 Hardened Plain Washer

4шт.

7701568

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 x 1-1/4 C

2шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 x 2 C

1шт.

7701600

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1/2-13 x 3-3/4 C

1шт.

873471

BOLT

1/2-13 x 4-3/4 C

1шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

2шт.

704163

LOCK NUT

5/16-18 HTLN

2шт.

704858

LOCK NUT

1/2-13 HTLN

4шт.
