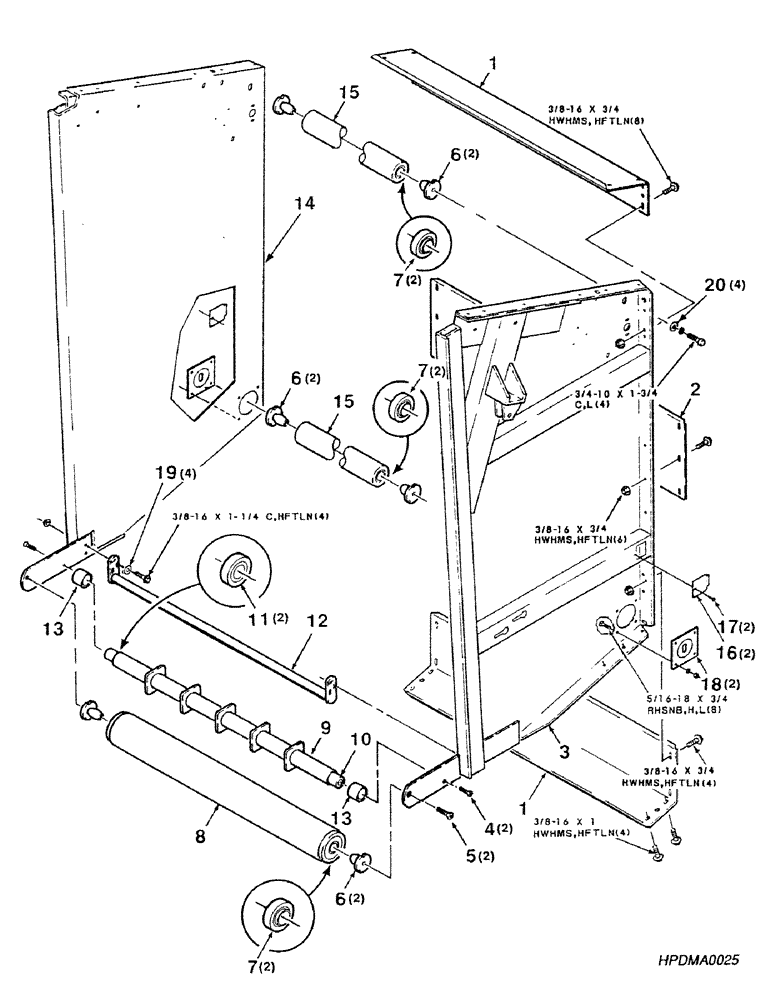

Запчасти Case IH 8450 (080) - TAILGATE ASSEMBLY (16) - BALE EJECTOR

1

700114350

SUPPORT

- Tailgate

2шт.

2

700114352

SUPPORT

- Center

1шт.

3

700114321

SIDE ASSY.

Side - Tailgate, Left

1шт.

4

771808

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 1/4"

3/8-16 x 1-1/4 HSFCHCS

2шт.

5

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 x 1-3/4 HSFCHCS

2шт.

6

700100927

HUB

- Roller

6шт.

7

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- Cylindrical

6шт.

8

700114378

ROLL

er Assembly - Lower (Includes Bearings)

1шт.

9

700114383

ROLLER ASSY.

Roller Assembly - Flanged (Includes Bearings)

1шт.

10

700119683

SHAFT

- Roller, Flanged

1шт.

11

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

- Cylindrical, Sealed

2шт.

12

700114266

SUPPORT

- Tie, Lower (S.N. CFH0015001 thru 0015766)

1шт.

12

700122471

SUPPORT

- Tie, Lower (S.N. CFH0015767 and on)

1шт.

13

6467674

SPACER

2шт.

14

700114323

SIDE ASSY.

Side - Tailgate, Right

1шт.

15

700116217

ROLL

er Assembly - Rear (Includes Bearings)

2шт.

16

700125158

LARGE PLATE

Plate

2шт.

17

701607

BRACKET

1/4-20 x 1/2 HWHTCTS

2шт.

18

700125148

PLUG

2шт.

19

705533

WASHER

3/8 Hardened Plain Washer

4шт.

20

705566

WASHER

3/4 Hardened Plain Washer

4шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

4шт.

7701196

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

3/4-10 x 1-3/4 C

4шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

8шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

18шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 x 1 HWHMS

4шт.

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN

26шт.

note a few early models had a flange on end of #9 which bolted with 2 bolts to side tailgate. this flange was 700107936 which now subs to #10 shaft and #13 spacer. djo 9/23/96

1шт.
