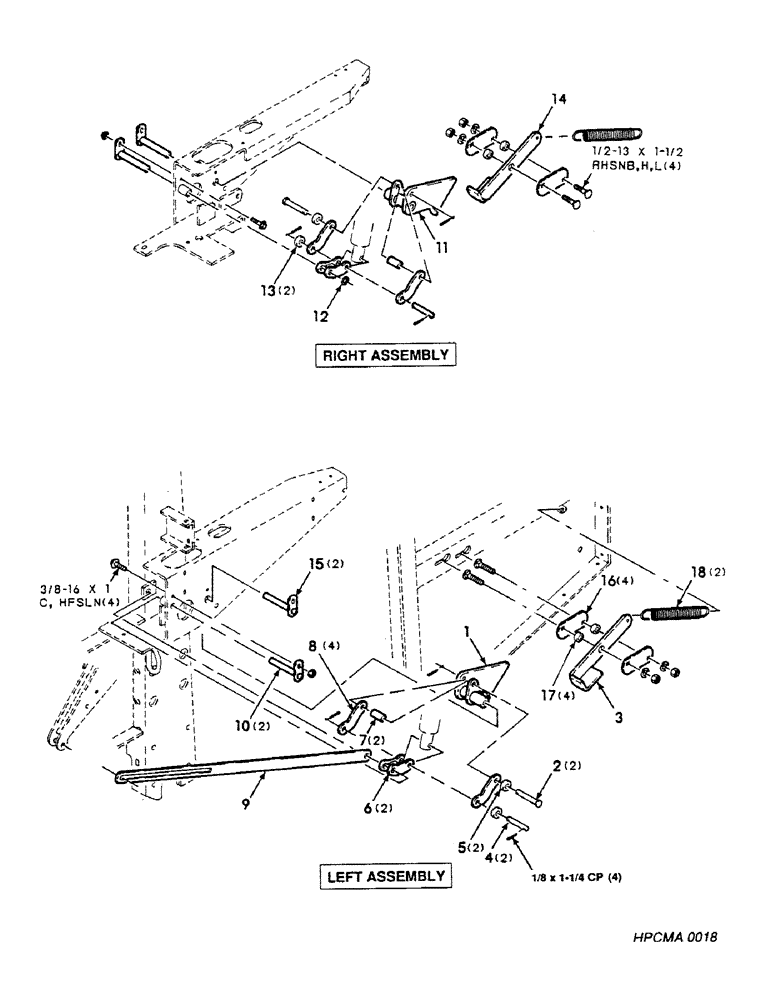

Запчасти Case IH 8450 (076) - TAILGATE LATCH ASSEMBLY, SERIAL NUMBER CFH0015001 THROUGH 0015274 (16) - BALE EJECTOR

1

700115933

LATCH

- Left (S.N. CFH0015001 thru 0015274) (Sub. 700119106 Latch and 700119111 Strap)

1шт.

1

700119106

LATCH

- Left (S.N. CFH0015275 and on)

1шт.

2

763870

CLEVIS PIN

5/8 x 4 Clevis Pin

2шт.

3

700115925

LATCH

- Left (S.N. CFH0015001 thru 0015274) (Sub. 700119111 Strap and 700119106 Latch)

1шт.

3

700119111

LATCH

- Strap, Left (S.N. CFH0015275 and on)

1шт.

4

700115939

PIN

2шт.

5

51200241

SPACER

2шт.

6

700115920

LINK

2шт.

7

488122

SPACER

2шт.

8

700115941

LINK

4шт.

9

700116058

LINK

- Stop (S.N. CFH0015001 thru 0015274)

1шт.

10

700115929

PIN

2шт.

11

700115934

LATCH

- Right (S.N. CFH0015001 thru 0015274) (Sub. 700119108 Latch and 700119112 Strap)

1шт.

11

700119108

LATCH

- Right (S.N. CFH0015275 and on)

1шт.

12

76612

WASHER

3/4 x 10 Gauge Machinery Bushing

1шт.

13

700109079

SPACER

2шт.

14

700115926

LATCH

- Right (S.N. CFH0015001 thru 0015274) (Sub. 700119112 Strap and 700119108 Latch)

1шт.

14

700119112

LATCH

- Strap, Right (S.N. CFH0015275 and on)

1шт.

15

700115918

PIN

2шт.

16

700115942

PLATE

4шт.

17

6287155

SPACER

4шт.

18

758441

SPRING

- Tension

2шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

4шт.

7700156

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 RHSNB

4шт.
