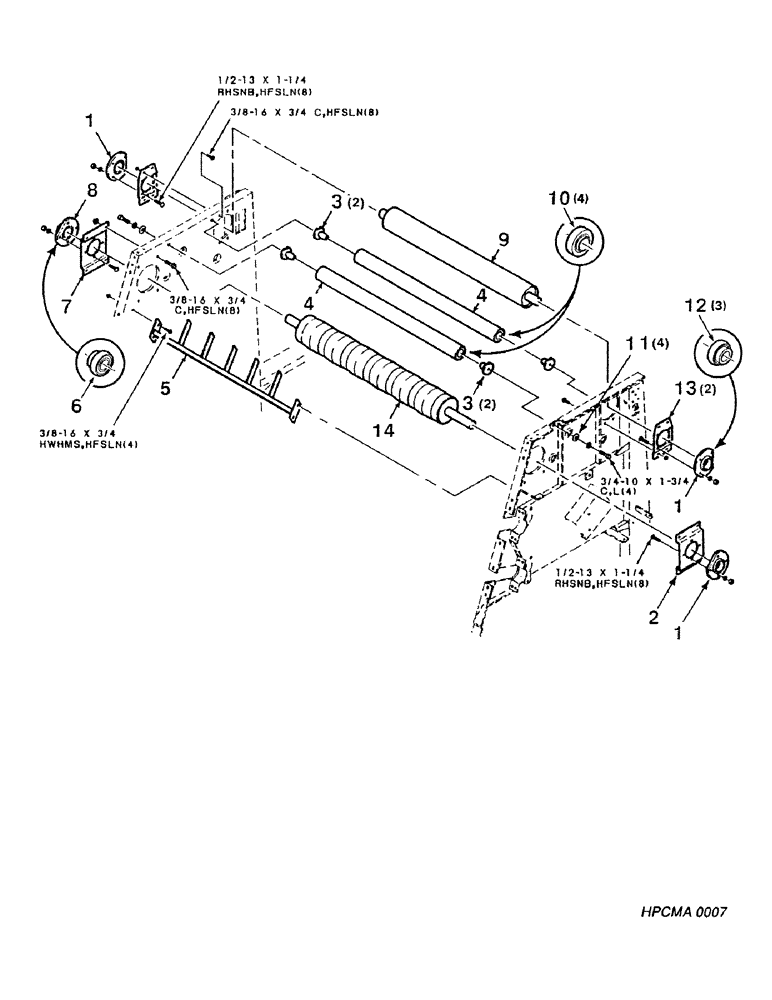

Запчасти Case IH 8450 (074) - ROLLERS, UPPER, AND FORMING BELTS GUIDE ASSEMBLY (14) - BALE CHAMBER

1

700109753

BEARING ASSY,97 mm ID x 108 mm OD x 33 mm

Bearing Assembly - Flange (Includes Bearing)

3шт.

2

700107963

SUPPORT

- Roller, Left

2шт.

3

700100927

HUB

- Roller

4шт.

4

700116217

ROLL

Assembly - Idler (Includes Bearings)

2шт.

5

700107929

GUIDE

- Belt

1шт.

6

51318

BEARING

- Spherical

1шт.

7

700107964

SUPPORT

- Roller, Right

1шт.

8

700110467

BEARING ASSY,44.45 mm ID x 92.44 mm OD x 29 mm

Bearing Assembly - Flange (Includes Bearing)

1шт.

9

700114370

ROLLER

- Upper Rear

1шт.

10

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- Cylindrical

4шт.

11

705566

WASHER

3/4 Hardened Plain Washer

4шт.

12

712158

SPHERICAL BEARING,2" ID x 100 mm OD

Bearing - Spherical

3шт.

13

700114406

PLATE

Support - Roller

2шт.

14

700707163

ROLL

er - Rubber

1шт.

7701196

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

3/4-10 x 1-3/4 C

4шт.

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C

16шт.

68619

BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5

1/2-13 x 1-1/4 RHSNB

16шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

4шт.
