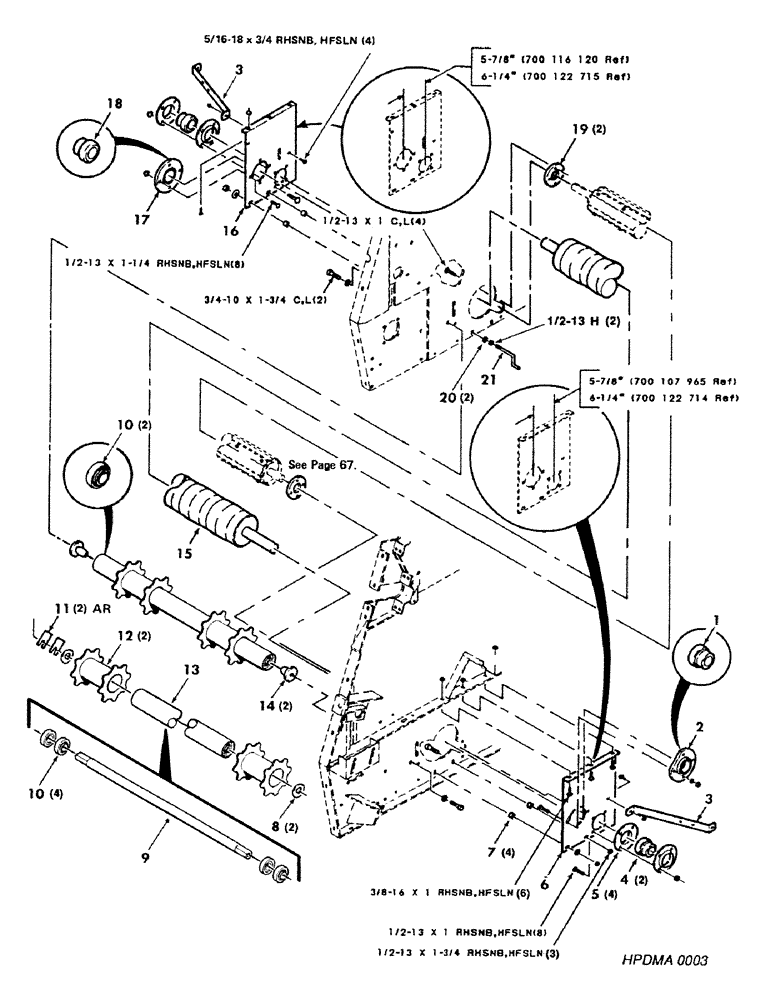

Запчасти Case IH 8450 (072) - ROLLERS, LOWER, ASSEMBLY (14) - BALE CHAMBER

1

712158

SPHERICAL BEARING,2" ID x 100 mm OD

Bearing - Spherical

1шт.

2

700109753

BEARING ASSY,97 mm ID x 108 mm OD x 33 mm

Bearing Assembly - Flange (Includes Bearing)

1шт.

3

700107962

STRAP

- Brace

2шт.

4

50468

SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 22, 43.66 mm

- Spherical

2шт.

5

663562R1

FLANGE

- Bearing

4шт.

6

700107965

SUPPORT

- Roller, Left (S.N. CFH0015001 thru 0015766)

1шт.

6

700122714

SUPPORT

- Roller, Left (S.N. CFH0015767 and on)

1шт.

7

700100054

SPACER

4шт.

8

700118652

WASHER

- Special (S.N. CFH0015221 and on)

2шт.

9

700118713

SHAFT

(S.N. CFH0015221 and on)

1шт.

10

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- Cylindrical (S.N. CFH0015001 thru 0015220)

2шт.

10

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- Cylindrical (S.N. CFH0015221 and on)

4шт.

11

700118654

SHIM

(S.N. CFH0015221 and on)

2шт.

12

700116219

SPROCKET ASSY.

Rienk - Track

2шт.

13

700116217

ROLL

er Assembly - Track (S.N. CFH0015001 thru 0015220)

1шт.

13

700118710

ROLLER

Assembly (Includes Center Shaft and Bearings - Track (S.N. CFH0015221 and on)

1шт.

14

700100927

HUB

- Roller (S.N. CFH0015001 thru 0015220)

2шт.

15

700707163

ROLL

er - Rubber

1шт.

16

700116120

SUPPORT

- Roller, Right (S.N. CFH0015001 thru 0015766)

1шт.

16

700122715

SUPPORT

- Roller, Right (S.N. CFH0015767 and on)

1шт.

17

700110467

BEARING ASSY,44.45 mm ID x 92.44 mm OD x 29 mm

Bearing Assembly - Flange

1шт.

18

51318

BEARING

- Spherical

1шт.

19

700107960

OIL SEAL

Ring - Grass (S.N. CFH0015001 thru 0015766)

2шт.

19

700122771

SPACER

Ring - Grass (S.N. CFH0015767 and on)

2шт.

20

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 Hardened Plain Washer

2шт.

21

700114407

CRANK

Rod - Guide

1шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 x 1 C

4шт.

7701196

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

3/4-10 x 1-3/4 C

2шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

2шт.

700047

BOLT

3/8-16 x 1 RHSNB

6шт.

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 RHSNB

8шт.

68619

BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5

1/2-13 x 1-1/4 RHSNB

8шт.

768226

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 RHSNB

3шт.
