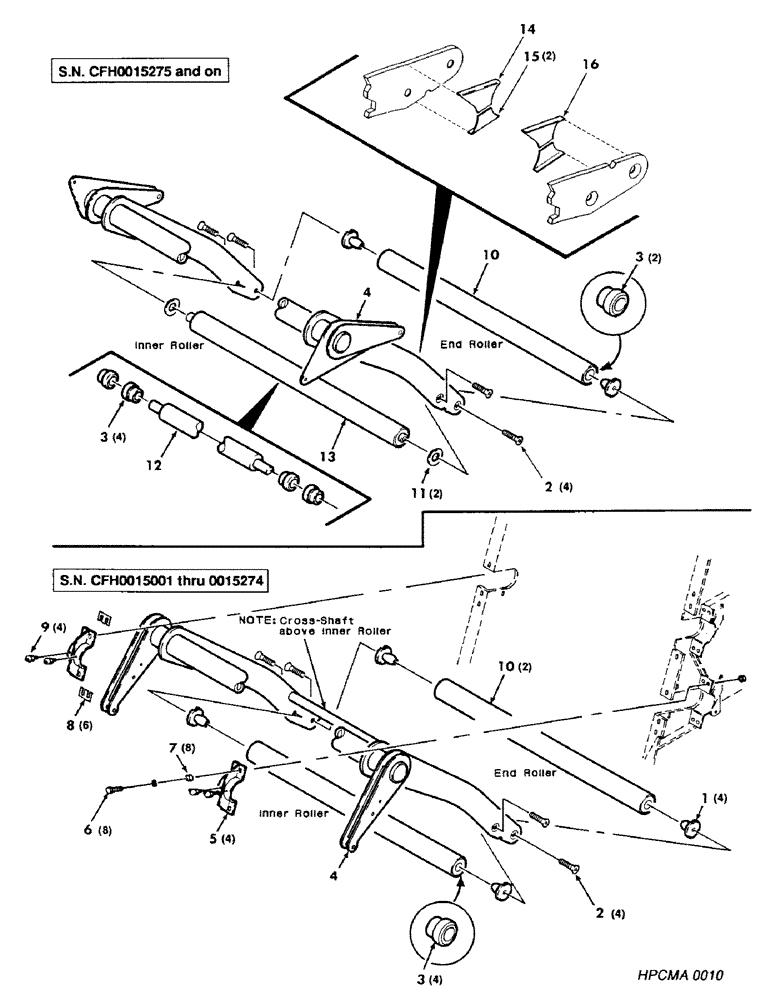

Запчасти Case IH 8450 (070) - BALE TENSION ROLLERS ASSEMBLY (14) - BALE CHAMBER

1

700100927

HUB

- Roller

2шт.

2

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 x 1-3/4 HSFCHCS

4шт.

3

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- Cylindrical

6шт.

4

700114361

ARM/LIFTING DEVICE

Arm - Tension, Lower (S.N. CFH0015001 thru 0015220)

1шт.

4

700118706

ARM

- Tension, Lower (S.N. CFH0015221 thru 0015274)

1шт.

4

700118996

ARM

- Tension, Lower (S.N. CFH0015275 and on)

1шт.

5

700107957

CLAMP

- Half

2шт.

6

61-34424

HEX SOC SCREW,7/16"-14 x 1 1/2"

7/16-14 x 1-1/2 HSHCS

8шт.

7

6520233

BUSHING

8шт.

8

700118536

SHIM

6шт.

9

77040

FITTING

1/4-28 x 45 Degree Zerk

4шт.

10

700107934

ROLL

er - Idler (Includes Bearings)

1шт.

11

700118652

WASHER

- Special

2шт.

12

700118709

SHAFT

- Center

1шт.

13

700118707

ROLL

er Assembly (With Shaft and Bearings)

1шт.

14

700119973

LARGE PLATE

Plate - Wear, Upper, Right

1шт.

15

700122464

LARGE PLATE

Plate - Wear, Lower

2шт.

16

700119972

LARGE PLATE

Plate - Wear, Upper, Left

1шт.
