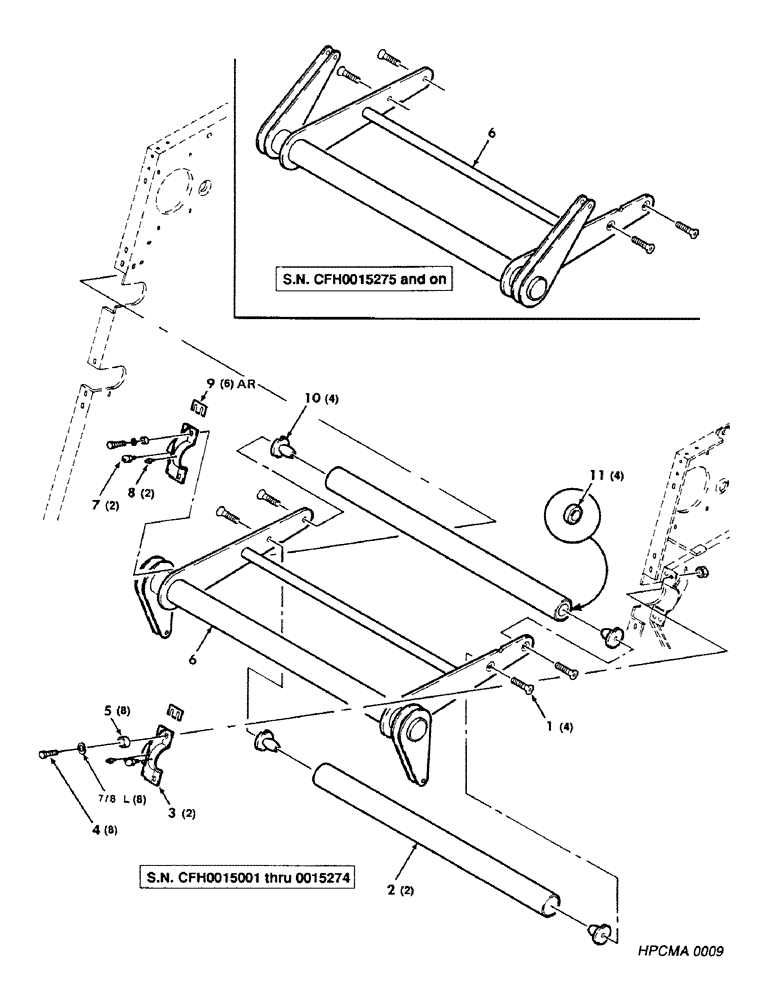

Запчасти Case IH 8450 (068) - BELT TENSION ROLLERS ASSEMBLY (14) - BALE CHAMBER

1

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 x 1-3/4 HSFCHCS

4шт.

2

700107934

ROLL

er - Idler (Includes Bearings)

2шт.

3

700107957

CLAMP

- Half

2шт.

4

61-34424

HEX SOC SCREW,7/16"-14 x 1 1/2"

7/16-14 x 1-1/2 HSHCS

8шт.

5

6520233

BUSHING

8шт.

6

700114366

ARM ASSY.

Arm - Tension, Upper (S.N. CFH0015001 thru 0015274)

1шт.

6

700118995

ARM

- Tension, Upper (S.N. CFH0015275 and on)

1шт.

7

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1/4-28 x 45 Degree Zerk

2шт.

8

77032

FITTING

1/4-28 Zerk

2шт.

9

700118536

SHIM

6шт.

10

700100927

HUB

- Roller

4шт.

11

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- Cylindrical

4шт.
