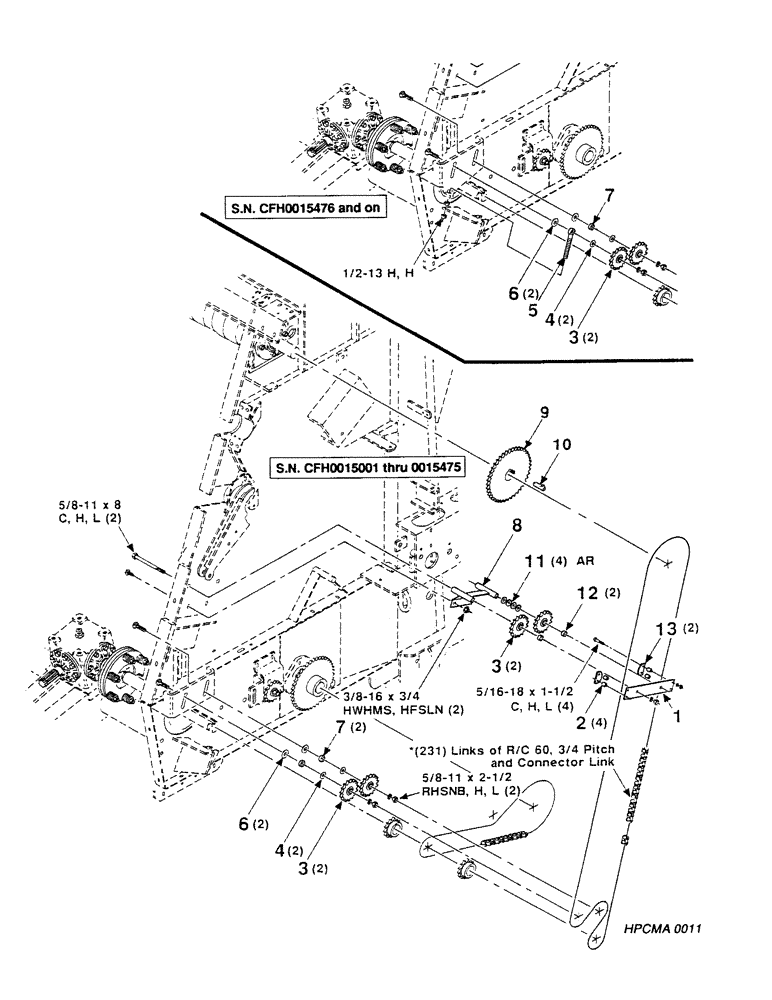

Запчасти Case IH 8450 (064) - DRIVE, UPPER, ROLLER ASSEMBLY (14) - BALE CHAMBER

1

700116044

SUPPORT

1шт.

2

6827794

SPACER

4шт.

3

541857R92

SPROCKET,15T

- Idler, 15-Tooth

4шт.

4

705582

WASHER

5/8 Hardened Plain Washer

2шт.

5

700119665

BOLT

Drawbolt (S.N. CFH0015476 and on)

1шт.

6

705566

WASHER

3/4 Hardened Plain Washer

2шт.

7

6229256

SPACER

1шт.

8

700116054

SUPPORT

- Idler

1шт.

9

6867659

SPROCKET ASSY.

Sprocket - 60B, 40-Tooth

1шт.

10

861088

BUCKET TOOTH KEY

1/2 x 2 Gib Key

1шт.

11

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 x 18 Gauge Machinery Bushing

1шт.

12

6529705

BUSHING

Spacer

2шт.

13

700116041

GUIDE

2шт.

7701717

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16-18 x 1-1/2 C

4шт.

873836

BOLT

5/8-11 x 8 C

2шт.

7870181

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 x 2-1/2 RHSNB

2шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

2шт.
