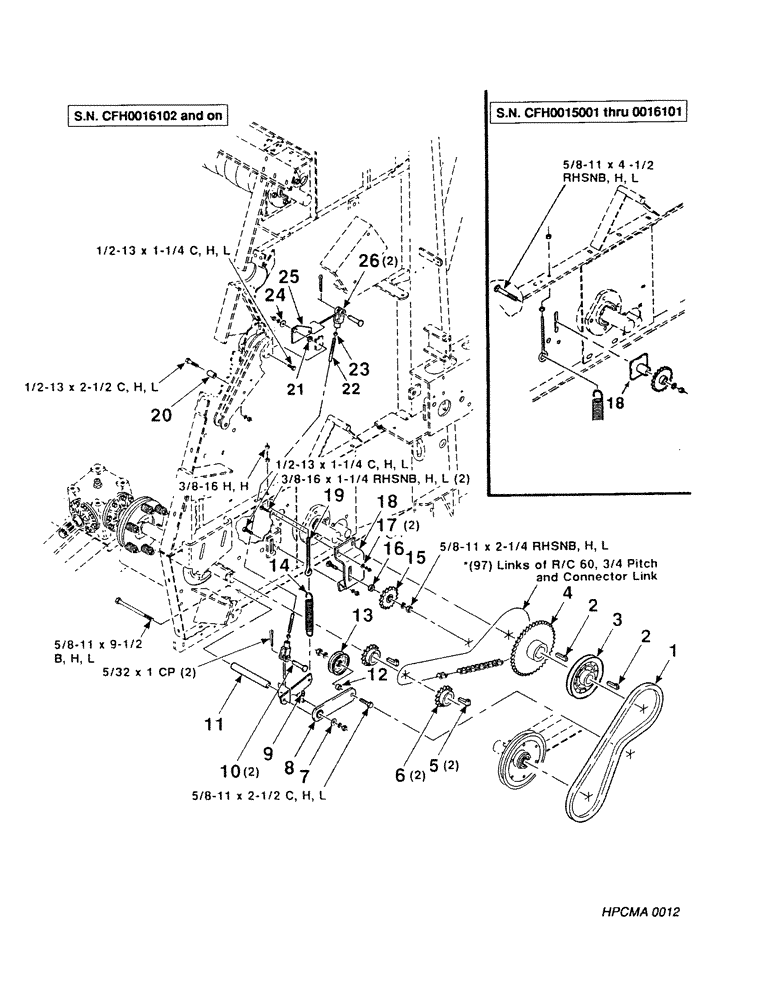

Запчасти Case IH 8450 (062) - DRIVE, PICKUP AND LOWER ROLLER, ASSEMBLY (14) - BALE CHAMBER
№
Артикул
Название
Примечание
Количество
1
57596
BELT
V-Belt
1шт.
2
861088
BUCKET TOOTH KEY
1/2 x 2 Gib Key
2шт.
3
700116042
SHEAVE
1шт.
4
6867659
SPROCKET ASSY.
Sprocket - 60-P, 40-Tooth
1шт.
5
61572
BUCKET TOOTH KEY
3/8 x 1-3/4 Gib Key
2шт.
6
7850720
PINION
Sprocket - 60-P, 14-Tooth
2шт.
7
705582
WASHER
5/8 Hardened Plain Washer
1шт.
8
700116045
LEVER
- Idler
1шт.
9
77032
FITTING
1/4-28 Straight Zerk
1шт.
10
63685
BELT, TRANSMISSION
1/2 x 1-1/2 Clevis Pin
2шт.
11
700116050
PIVOT ASSY.,25.4 mm OD, 204 mm Length
Tube Pivot
1шт.
12
254409
SPACER
1шт.
13
662958R91
PULLEY
- Idler
1шт.
14
858167
SPRING
1шт.
15
87726
NUT
Sprocket - Idler, 60-P, 15-Tooth
1шт.
16
6229256
SPACER
(S.N. CFH0016102 and on)
1шт.
17
705533
WASHER
3/8 Hardened Plain Washer
2шт.
18
700116039
SUPPORT
Mounting - Idler (S.N. CFH0015001 thru 0016101)
1шт.
700126768
MOUNTING PARTS
Mounting Idler (S.N. CFH0016102 and on)
1шт.
REF 18 700126768 IS AS PICTURED IN THIS CATALOG. OTHER REF 18 700116039 IS A TOTALLY DIFFERENT PART (PER DLR DOESN'T EVEN LOOK LIKE IT WOULD FIT HERE, BUT IT DOES) IT CAME ON THE EARLIER SERIAL BALERS.
1шт.
19
51200285
SCREW
3/8-16 Drawbolt
1шт.
20
6234710
SPACER
1шт.
21
6582696
SPACER
Bushing
1шт.
22
700116052
ROD,THREADED
Rod
1шт.
23
704304
NUT
3/8-24 Hex Nut
1шт.
24
700709605
WASHER,1/2"
1/2 Wide Plain Washer
1шт.
25
700116051
PLATE
1шт.
26
766691
SPARE PART
2шт.
7701188
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 x 1-1/4 C
1шт.
70922526
SCREW
1/2-13 x 2-1/2 C
1шт.
7701659
BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5
5/8-11 x 2-1/2 C
1шт.
7773484
BOLT,Hex, 5/8" - 11 x 9 1/2", Gr 5
5/8-11 x 9-1/2 B
1шт.
700054
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
3/8-16 x 1-1/4 RHSNB
2шт.
7870173
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5
5/8-11 x 2-1/4 RHSNB
1шт.
7870249
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5
5/8-11 x 4-1/2 RHSNB
1шт.
CAN/CAM 7/21/98
1шт.
