(052) - GUIDES, FORMING BELTS, ASSEMBLY

Запчасти Case IH 8450 (052) - GUIDES, FORMING BELTS, ASSEMBLY (14) - BALE CHAMBER

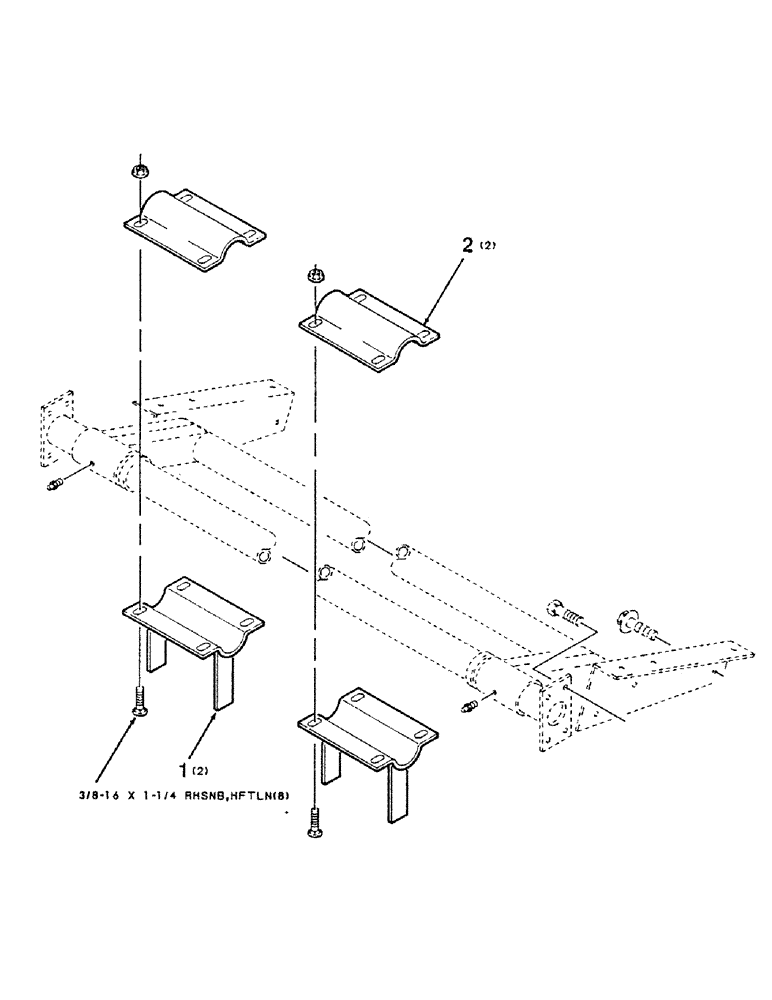

Схема запчастей Case IH 8450 - (052) - GUIDES, FORMING BELTS, ASSEMBLY (14) - BALE CHAMBER
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700122577

GUIDE

- Belt (S.N. CFH0015767 and on) The Belt Guides will retrofit on all 8450 Round Balers

2шт.

2

700122578

GUIDE

Clamp - Half (S.N. CFH0015767 and on) The Belt Guides will retrofit on all 8450 Round Balers

2шт.

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1/4 RHSNB

8шт.

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN

8шт.
