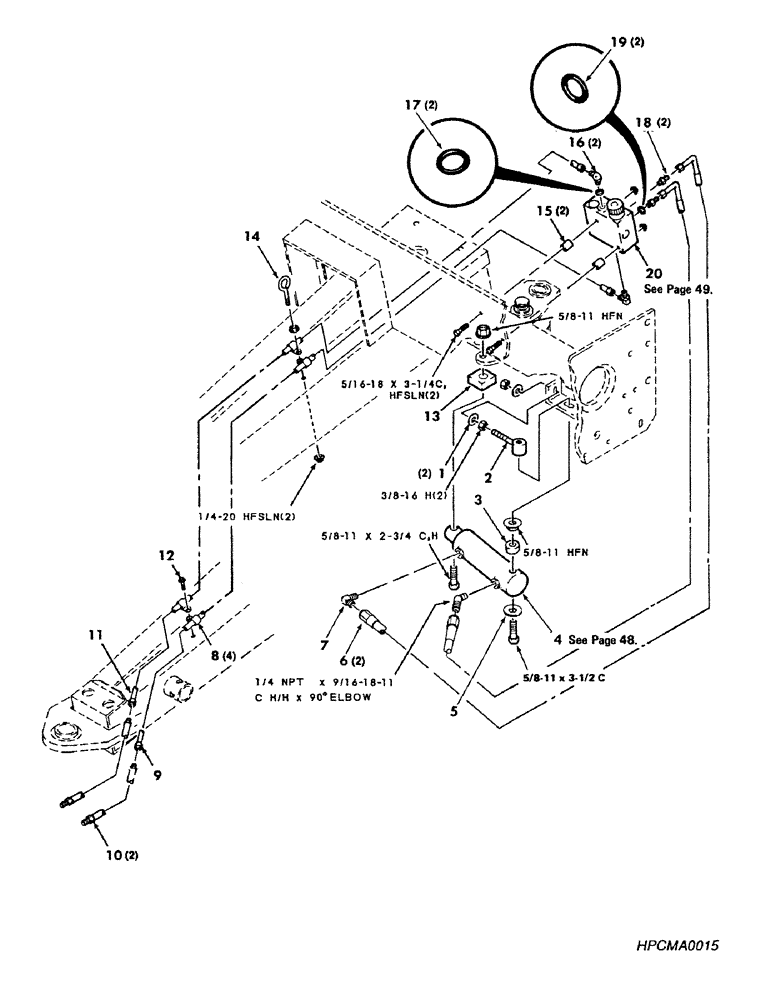

Запчасти Case IH 8450 (046) - THREADER, HYDRAULIC, ASSEMBLY (14) - BALE CHAMBER

1

705533

WASHER

3/8 Hardened Plain Washer

2шт.

2

700116206

SPECIAL BOLT

Drawbolt

1шт.

3

51200241

SPACER

(S.N. CFH0015767 and on)

1шт.

4

7075625

CYLINDER

- Hydraulic

1шт.

5

NLS

NO LONGER SERVICED

5/8 Hardened Plain Washer

1шт.

6

700707272

HOSE

- Hydraulic

2шт.

7

846170

ELBOW

90 Degree Elbow

1шт.

8

751487

CLAMP

- Line

4шт.

9

700707780

LINE

- Hydraulic

1шт.

10

7072135

HYDRAULIC HOSE,0.50" ID x 58.00", SAE 100R2

Hose - Hydraulic

2шт.

11

700707779

LINE

- Hydraulic

1шт.

12

7702012

SELF-TAP SCREW,3/8" - 16 x 1"

3/8-16 x 1 HWHTCTS

1шт.

13

700118879

NUT

- Special (S.N. CFH0015275 and on)

1шт.

14

866061

EYEBOLT

(S.N. CFH0015275 and on)

1шт.

15

6260244

SPACER

2шт.

16

846329

ELBOW

90 Degree Elbow (Includes O-Ring)

2шт.

17

279706

O-RING

2шт.

18

700701356

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Connector (Includes O-Ring)

2шт.

19

7040397

O-RING

2шт.

20

700707258

GOVERNOR

Regulator (Flow) - Hydraulic

1шт.

7773997

BOLT

5/16-18 x 3-1/4 C

2шт.

703561

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8-11 x 2-3/4 C

1шт.

7701683

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 x 3 C

1шт.

7701550

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 C

1шт.

7704034

NUT,Flg, 5/8"-11, G5

5/8-11 HFN

2шт.
