(036) - TWINE CUTOFF ASSEMBLY

Запчасти Case IH 8450 (036) - TWINE CUTOFF ASSEMBLY (14) - BALE CHAMBER

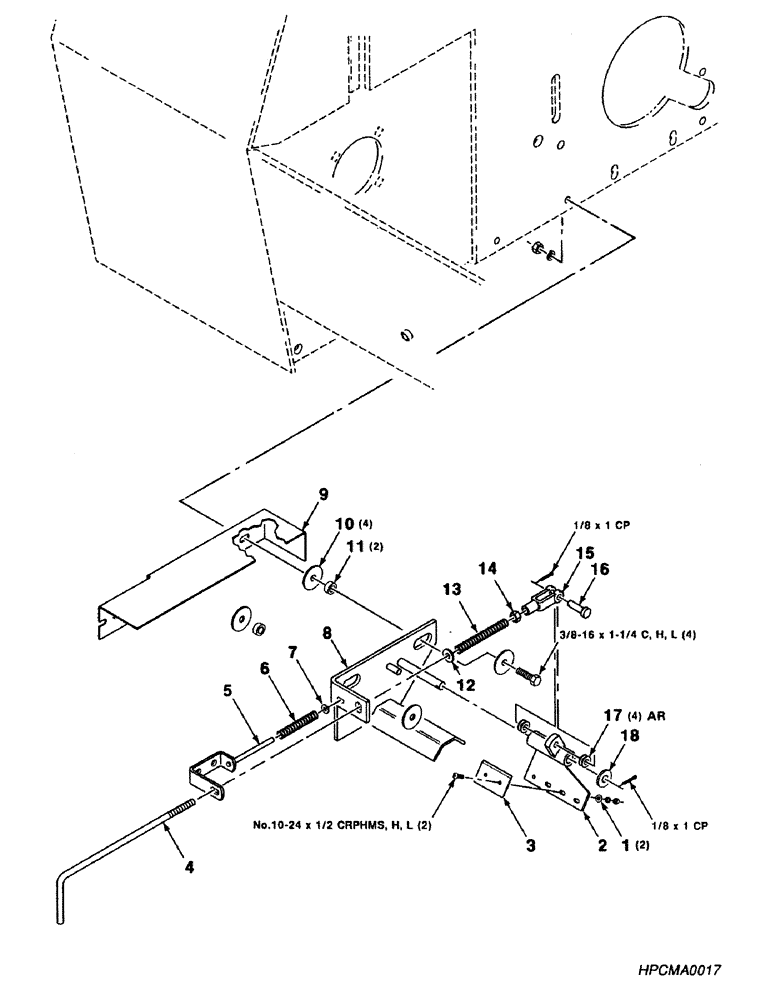

Схема запчастей Case IH 8450 - (036) - TWINE CUTOFF ASSEMBLY (14) - BALE CHAMBER
13
1
18
16
9
5
3
4
6
12
8
11
2
10
14
15
7
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

70925966

WASHER

No. 10 Plain Washer

2шт.

2

700119129

MOUNTING PARTS

Mounting - Knife

1шт.

3

700106962

KNIFE

- Twine

1шт.

4

700115917

ROD

1шт.

5

700107970

SUPPORT

- Rod

1шт.

6

700707200

COMPRESSION SPRING

Spring - Compression

1шт.

7

705517

WASHER

1/4 Hardened Plain Washer

1шт.

8

700119127

SUPPORT

- Cutoff

1шт.

9

700107972

SHIELD

- Cutoff, Twine

1шт.

10

7705734

WASHER

- Fender

4шт.

11

6212740

SPACER

2шт.

12

6212740

SPACER

3/8 Hardened Plain Washer

1шт.

13

700707199

SPRING

- Compression

1шт.

14

704304

NUT

3/8-24 Hex Nut

1шт.

15

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

Clevis - 3/8-24 Thread

1шт.

16

063586

CLEVIS PIN

3/8 x 1-1/8 Clevis Pin

1шт.

17

705657

WASHER

3/8 Narrow Plain Washer

4шт.

18

495-11053

WASHER,1/2", SAE

1/2 Narrow Plain Washer

1шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

4шт.

700700628

SCREW,Cross Pan Hd, #10-24 x 1/2"

No. 10-24 x 1/2 CRPHMS

2шт.

NLS

NO LONGER SERVICED

No. 10-24 H

2шт.
