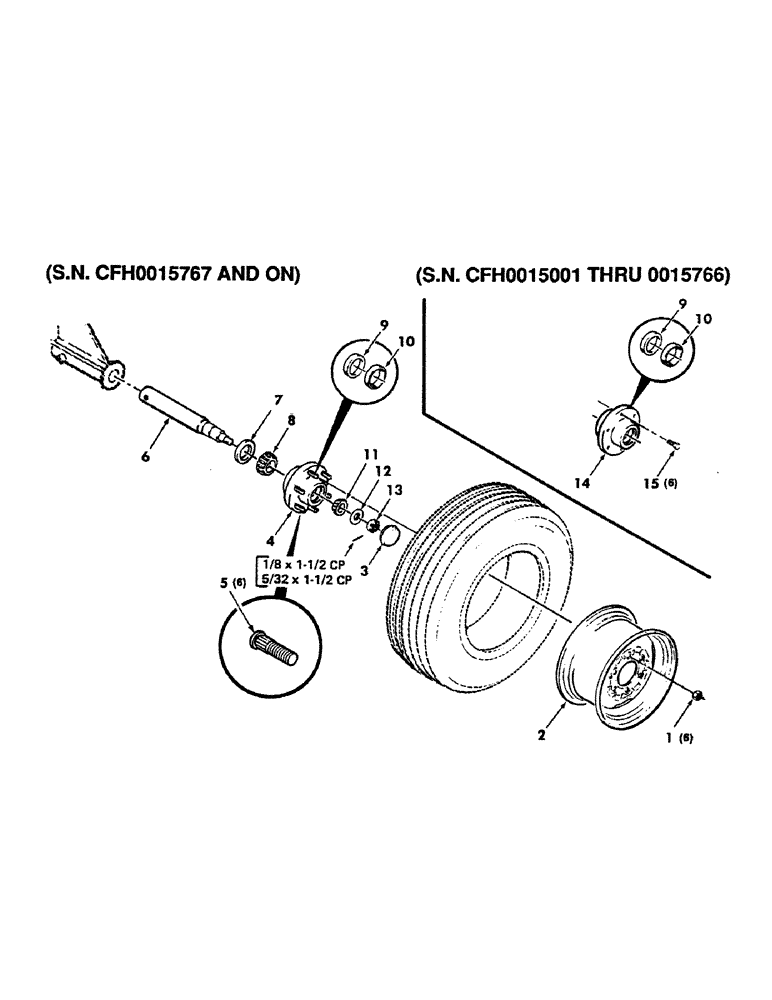

Запчасти Case IH 8450 (024) - WHEEL AND AXLE ASSEMBLY, SERIAL NUMBER CFH0015767 AND ON, SERIAL NUMBER CFH0015001 THROUGH 0015766 (12) - MAIN FRAME

1

826313

NUT

9/16-18 Wheel Nut

6шт.

2

826008

RIM

Wheel, 15" (Standard)

1шт.

2

26641

WHEEL

13.5 (High Flotation)

1шт.

3

26930

CAP

- Hub

1шт.

4

700709830

HUB

Assembly (Hub will retrofit on all) (Includes Cups and Wheel Bolts) (S.N. CFH0015767 and on)

1шт.

5

826370

BOLT,Ribbed Nk, 9/16" - 18 x 2.12"

9/16-18 Ribbed Neck Wheel Bolt (S.N. CFH0015767 and on)

6шт.

6

700114346

SPINDLE

- Axle

1шт.

7

844050

SEAL

- Grease

1шт.

8

713537

ROLLER BEARING

Bearing Cone - Inner

1шт.

9

713545

CUP

Bearing Cup - Inner

1шт.

10

711242

BEARING CUP

- Outer

1шт.

11

711507

ROLLER BEARING,31.77 mm ID x 16.764 mm

Bearing Cone - Outer

1шт.

12

26971

WASHER

1шт.

13

7704208

SLOTTED NUT

3/4-16 Slotted Hex Nut

1шт.

14

826255

HUB

Assembly (Includes Cups) (S.N. CFH0015001 thru 0015766)

2шт.

15

T52730

WHEEL BOLT

9/16-18 x 1-1/8 Wheel Bolt (S.N. CFH0015001 thru 0015766)

6шт.
