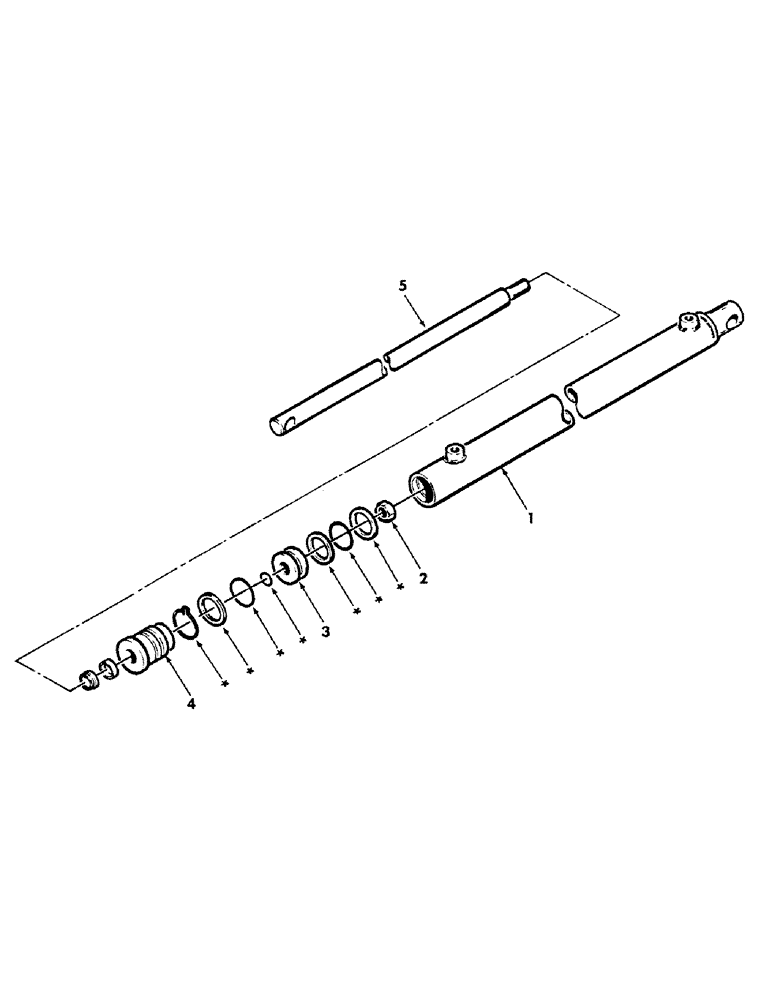

Запчасти Case IH 8450 (115) - CYLINDER, HYDRAULIC, PICKUP, SERIAL NUMBER CFH0015001 THROUGH 0015274, 700707410 CYLINDER (07) - HYDRAULICS

700707410

CYLINDER

Complete - Hydraulic, Pickup

1шт.

700709416

CYLINDER

Complete - Hydraulic Pickup (See Page 114)

1шт.

1

700707303

TUBE ASSY.

Barrel

1шт.

2

700707304

LOCK NUT

5/8-18 Locknut

1шт.

3

700707305

PISTON

1шт.

4

700707306

GLAND

- Head

1шт.

5

700707302

PISTON ROD

Rod - Piston

1шт.

700707308

SEAL KIT

Seal and O-Ring Repair Kit, Includes items in art marked with Asterisk.

1шт.
