(108) - CYLINDER, HYDRAULIC, TENSIONER, UPPER AND KICKER, SERIAL NUMBER CFH0015275 AND ON

Запчасти Case IH 8450 (108) - CYLINDER, HYDRAULIC, TENSIONER, UPPER AND KICKER, SERIAL NUMBER CFH0015275 AND ON (07) - HYDRAULICS

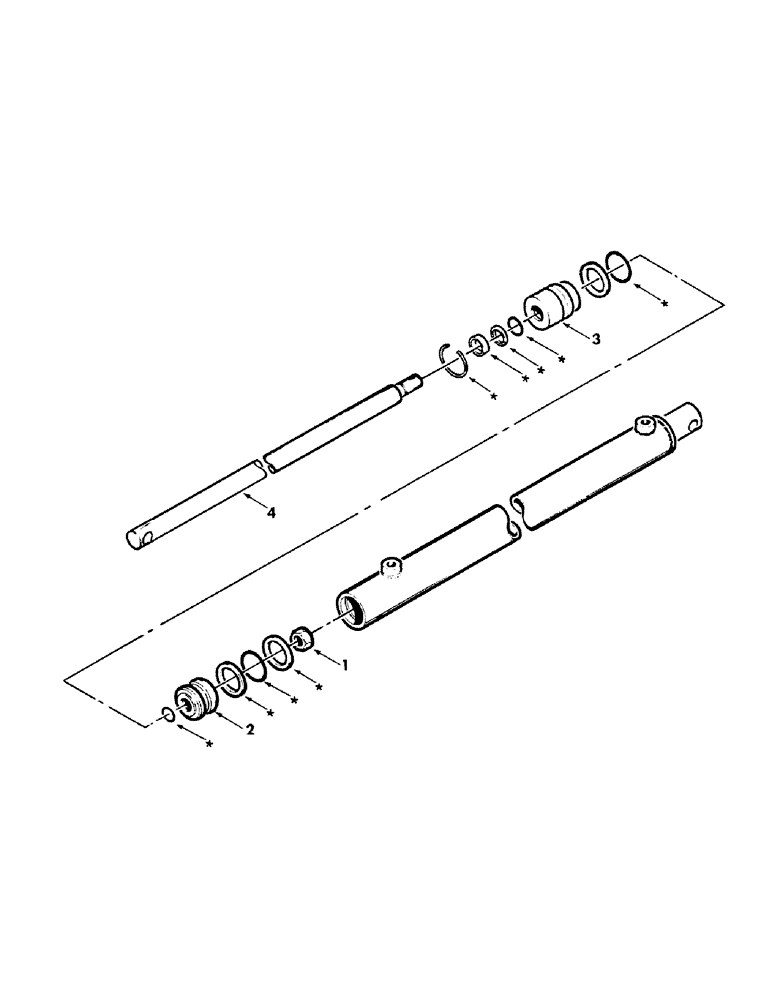

Схема запчастей Case IH 8450 - (108) - CYLINDER, HYDRAULIC, TENSIONER, UPPER AND KICKER, SERIAL NUMBER CFH0015275 AND ON (07) - HYDRAULICS
1
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700707262

CYLINDER

- Hydraulic, Complete

1шт.

1

700707418

JAM NUT

7/8-14 Hex Jam Nut

1шт.

2

700707419

PISTON

1шт.

3

700707420

GUIDE

- Head

1шт.

4

700707421

ROD

- Piston

1шт.

700708736

SEAL KIT

and O-Ring Repair Kit, Includes items in art marked with Asterisk.

1шт.
