(107) - CYLINDER, HYDRAULIC, TAILGATE

Запчасти Case IH 8450 (107) - CYLINDER, HYDRAULIC, TAILGATE (07) - HYDRAULICS

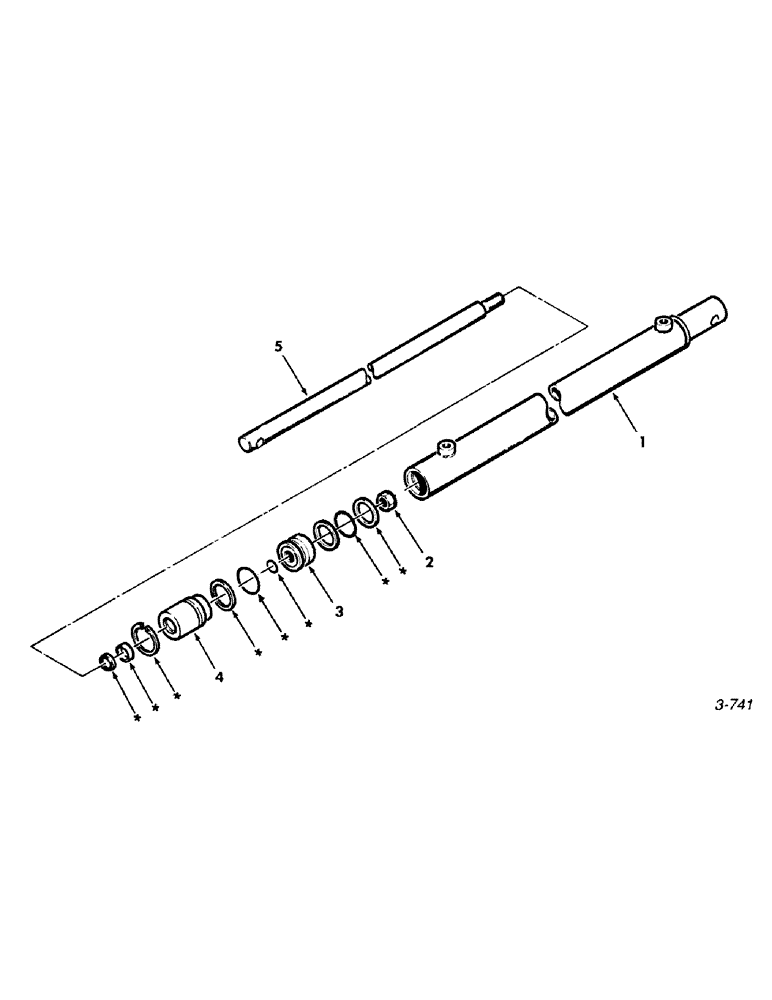

Схема запчастей Case IH 8450 - (107) - CYLINDER, HYDRAULIC, TAILGATE (07) - HYDRAULICS
5
1
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700707783

CYLINDER

- Hydraulic, Complete

1шт.

1

700707922

BODY

Barrel

1шт.

2

700707418

JAM NUT

7/8-14 Hex Jam Nut

1шт.

3

700707419

PISTON

1шт.

4

700708328

GUIDE

- Head

1шт.

5

700707921

ROD

1шт.

700708329

SEAL KIT

and O-Ring Repair Kit, Includes items in art marked with Asterisk.

1шт.

700708737

SEAL

and O-Ring Repair Kit, Includes items in art marked with Asterisk.

1шт.
