(105) - VALVE, BALE TENSIONER, SERIAL NUMBER CFH0015275 AND ON

Запчасти Case IH 8450 (105) - VALVE, BALE TENSIONER, SERIAL NUMBER CFH0015275 AND ON (07) - HYDRAULICS

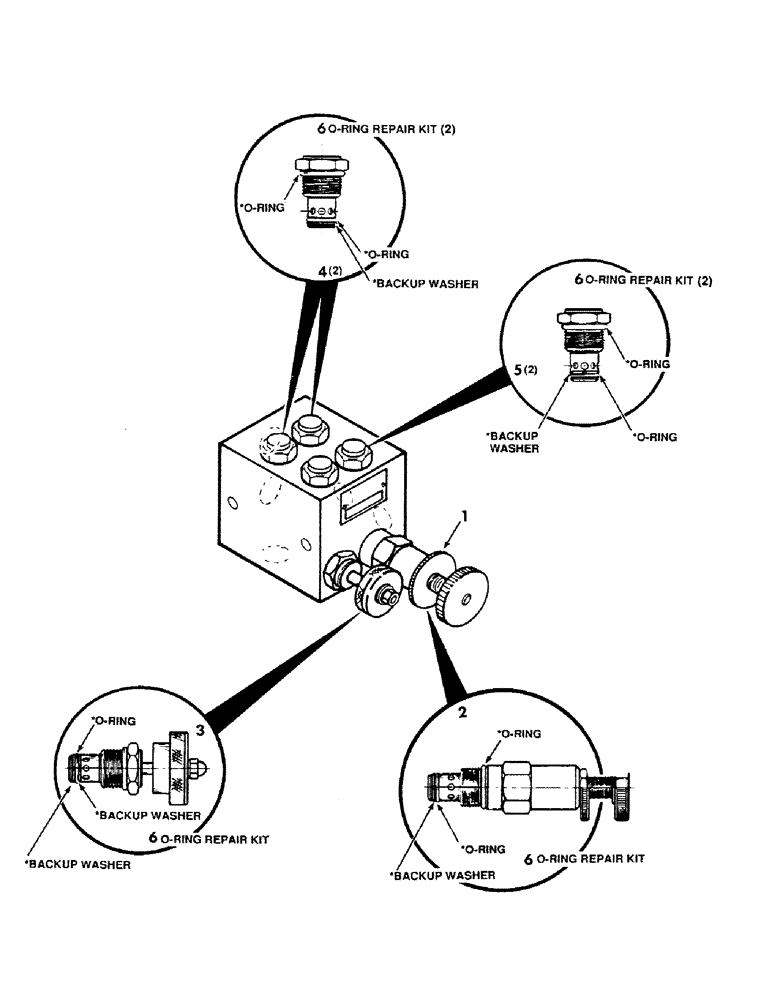

Схема запчастей Case IH 8450 - (105) - VALVE, BALE TENSIONER, SERIAL NUMBER CFH0015275 AND ON (07) - HYDRAULICS
6
5
1
2
3
6
6
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700708923

VALVE

- Bale Tensioner, Complete (CFH0015275 and on)

1шт.

2

700707908

VALVE POPPET

Valve - Relief

1шт.

3

700706158

DRAINCOCK/TAP SUPPLY

Valve

1шт.

4

700707831

VALVE

- Check

2шт.

5

700707846

VALVE

- Check

2шт.

5

700709237

VALVE POPPET

Valve - Check

2шт.

6

700706154

SEAL KIT

Seal and O-Ring Repair Kit, Includes items in art marked with Asterisk.

6шт.
