(104) - VALVE, BALE TENSIONER, SERIAL NUMBER CFH0015001 THRU 0015274

Запчасти Case IH 8450 (104) - VALVE, BALE TENSIONER, SERIAL NUMBER CFH0015001 THRU 0015274 (07) - HYDRAULICS

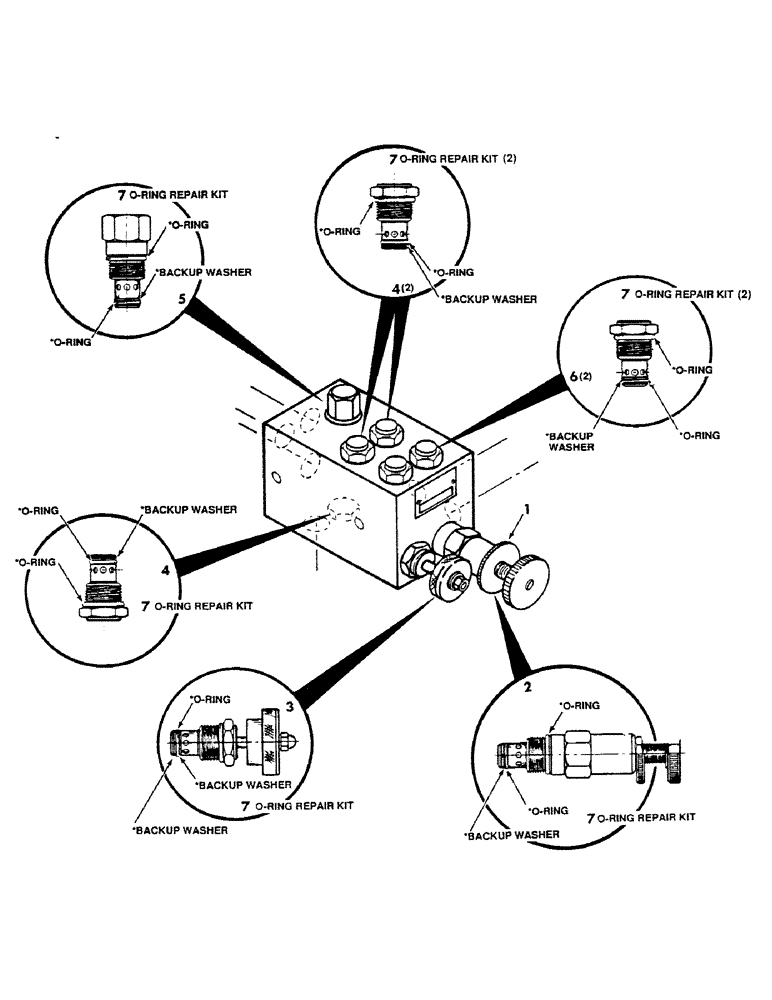

Схема запчастей Case IH 8450 - (104) - VALVE, BALE TENSIONER, SERIAL NUMBER CFH0015001 THRU 0015274 (07) - HYDRAULICS
7
7
1
7
7
2
7
4
5
7
3
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700707256

VALVE

- Bale Tensioner, Complete (S.N. RB 550015001 thru 0015274)

1шт.

2

700707908

VALVE POPPET

Valve - Relief

1шт.

3

700706158

DRAINCOCK/TAP SUPPLY

Valve

1шт.

4

700707831

VALVE

- Check

3шт.

5

700707847

CONTROL

- Flo

1шт.

6

700707846

VALVE

- Check

2шт.

6

700709237

VALVE POPPET

Valve - Check

2шт.

7

700706154

SEAL KIT

Seal and O-Ring Repair Kit, Includes items in art marked with Asterisk.

8шт.
