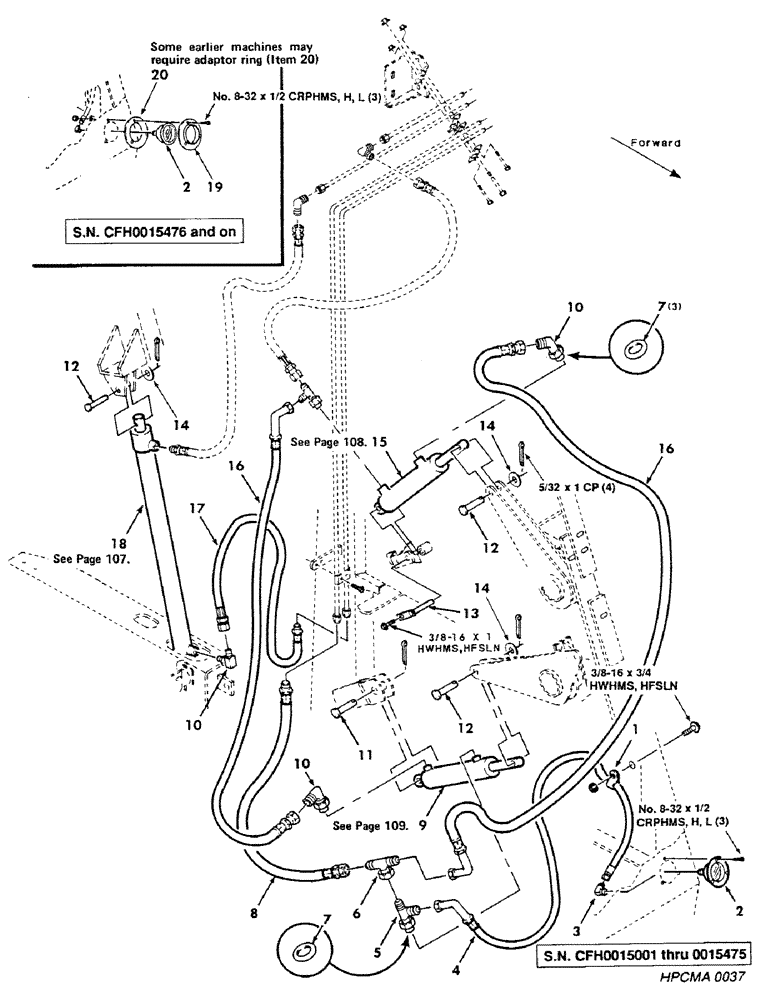

Запчасти Case IH 8450 (102) - HYDRAULIC, TENSION CONTROL, RIGHT, ASSEMBLY, SERIAL NUMBER CFH0015275 AND ON (07) - HYDRAULICS

1

751487

CLAMP

- Line

1шт.

2

700707986

GAUGE

- Pressure (Includes Items 2, 19, and 20) (S.N. CFH0015001 thru 0015475)

1шт.

2

700709290

GAUGE

- Pressure (S.N. CFH0015476 and on)

1шт.

3

8046666

FITTING

90 Degree Elbow

1шт.

4

700708924

HOSE ASSY.

Hose - Hydraulic

1шт.

5

8046658

TEE

- Straight Run (Includes O-Ring)

1шт.

6

8746034

TEE

1шт.

7

738468

O-RING

4шт.

8

7795388

HOSE

- Hydraulic

1шт.

9

700708921

CYLINDER

- Hydraulic, Tensioner - Lower

1шт.

10

7746555

ELBOW

90 Degree Elbow (Includes O-Ring)

3шт.

11

62653

CLEVIS PIN

5/8 x 3 Clevis Pin

1шт.

12

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8 x 2-1/2

3шт.

13

700118823

PIN

1шт.

14

705582

WASHER

5/8 Hardened Plain Washer

3шт.

15

700707262

CYLINDER

- Hydraulic, Tensioner - Upper

1шт.

16

700707286

HOSE

- Hydraulic

2шт.

17

700708712

HYDRAULIC HOSE,9.65 mm ID x 560.00 mm, SAE 100R2

9.65 mm ID x 560.00 mm, SAE 100R2

1шт.

18

700707783

CYLINDER

- Hydraulic, Tailgate

1шт.

19

700709292

FLANGE

Ring Clamp - Gauge (S.N. CFH0015476 and on)

1шт.

20

700119686

OIL SEAL

Ring - Adapter (S.N. CFH0015001 thru 0015475)

1шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

1шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 x 1 HWHMS

1шт.

700705185

SCREW,Cross Pan Hd, #8-32 x 1/2"

No. 8-32 x 1/2 CRPHMS

3шт.

704494

HARDWARE

No. 8-32 H

3шт.

705087

WASHER, LOCK

No. 8 L

3шт.
