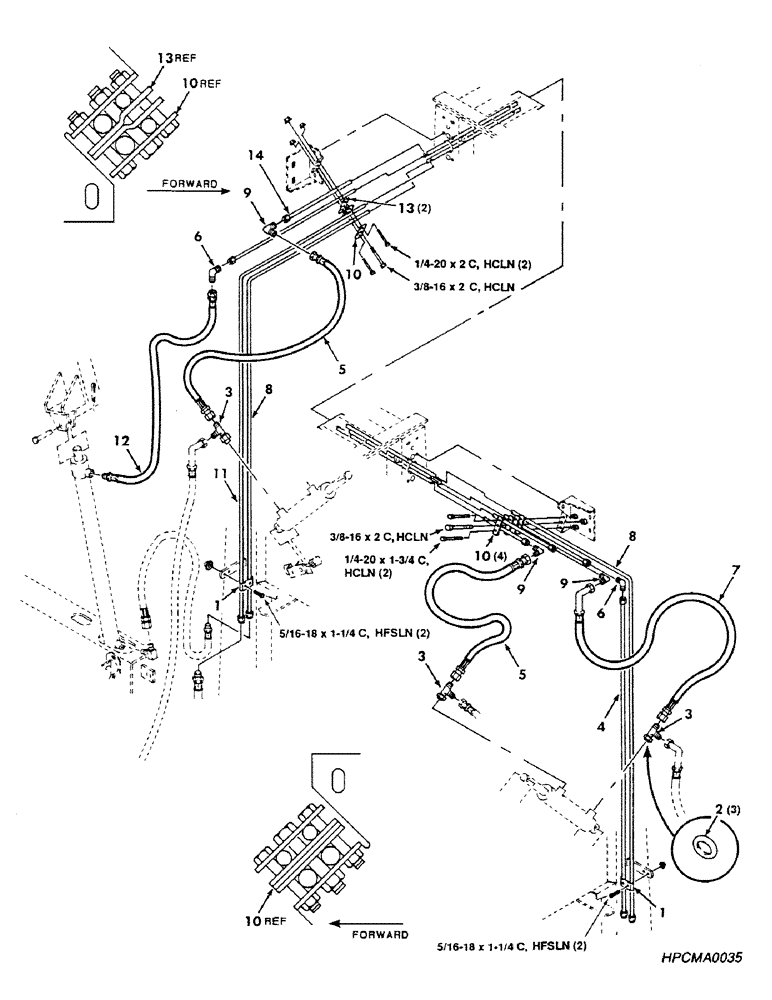

Запчасти Case IH 8450 (100) - HYDRAULIC, CROSS LINES, ASSEMBLY, SERIAL NUMBER CFH0015275 AND ON (07) - HYDRAULICS

1

700116034

CLAMP

- Line

2шт.

2

738468

O-RING

3шт.

3

8046658

TEE

- Straight Run (Includes O-Ring)

3шт.

4

700708717

TUBE,12.7 mm OD, 856 mm Length

Line - Hydraulic

1шт.

5

8042715

HYDRAULIC HOSE,9.65 mm ID x 787.00 mm, SAE 100R1,SAE J517,SAE J343,SAE J516

9.65 mm ID x 787.00 mm, SAE 100R1,SAE J517,SAE J343,SAE J516

2шт.

6

7046626

ELBOW

90 Degree Elbow

2шт.

7

700707286

HOSE

- Hydraulic

1шт.

8

700708718

TUBE,12.7 mm OD, 1527, 880 mm Length

Line - Hydraulic

2шт.

9

791038

ELBOW

90 Degree Elbow

3шт.

10

700118602

STRAP

- Clamp, Line

5шт.

11

700707269

LINE

- Hydraulic

1шт.

12

700708714

HOSE ASSY.

Hose - Hydraulic

1шт.

13

700118605

STRAP

- Clamp, Line

2шт.

14

700707270

LINE

- Hydraulic

1шт.

703140

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

1/4-20 x 1-3/4 C

2шт.

7701485

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1/4-20 x 2 C

2шт.

7706768

DRIVE BUSHING,38.25mm ID x 47.74mm OD x 36.1mm L

5/16-18 x 1-1/4 C

4шт.

7701634

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8-16 x 2 C

2шт.

704783

SHIM,.020" Thk

1/4-20 HCLN

4шт.

88902

NUT,3/8"-16

3/8-16 HCLN

2шт.
