(098) - HYDRAULIC, TAILGATE, LEFT, ASSEMBLY, SERIAL NUMBER CFH0015275 AND ON

Запчасти Case IH 8450 (098) - HYDRAULIC, TAILGATE, LEFT, ASSEMBLY, SERIAL NUMBER CFH0015275 AND ON (07) - HYDRAULICS

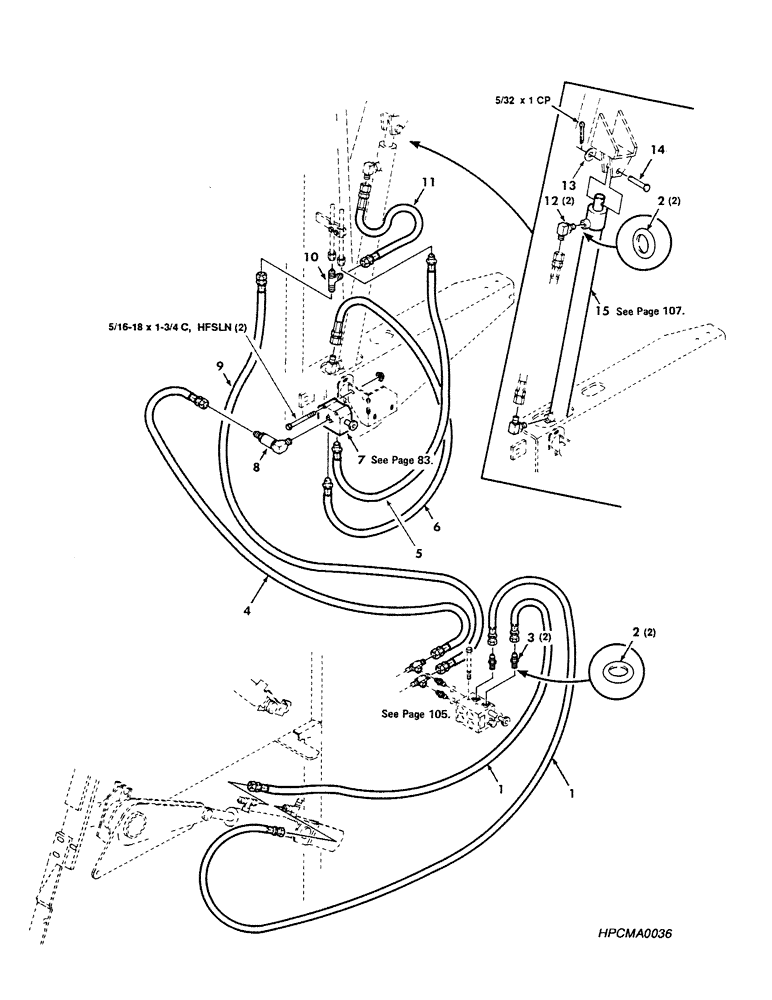

Схема запчастей Case IH 8450 - (098) - HYDRAULIC, TAILGATE, LEFT, ASSEMBLY, SERIAL NUMBER CFH0015275 AND ON (07) - HYDRAULICS
3
5
9
14
11
13
1
10
1
6
8
2
7
2
4
15
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700707445

HOSE

- Hydraulic

2шт.

2

738468

O-RING

4шт.

3

846634

COUPLING, BREAK AWAY

Connector Flared (Includes O-Ring)

2шт.

4

700705745

FLEXIBLE HOSE

Hose - Hydraulic

1шт.

5

700708929

HYDRAULIC HOSE,9.65 mm ID x 1040.00 mm, SAE 100R2

9.65 mm ID x 1040.00 mm, SAE 100R2

1шт.

6

700708927

HYDRAULIC HOSE,9.65 mm ID x 850.00 mm, SAE 100R2

9.65 mm ID x 850.00 mm, SAE 100R2

1шт.

7

700704264

VALVE

- Shutoff

1шт.

8

700119132

ORIFICE

Assembly

1шт.

9

700708928

HYDRAULIC HOSE,9.65 mm ID x 970.00 mm, SAE 100R2

9.65 mm ID x 970.00 mm, SAE 100R2

1шт.

10

746032

TEE

- Flared

1шт.

11

700708926

HYDRAULIC HOSE,9.65 mm ID x 600.00 mm, SAE 100R2

9.65 mm ID x 600.00 mm, SAE 100R2

1шт.

12

7746555

ELBOW

90 Degree Elbow (Includes O-Ring)

2шт.

13

705582

WASHER

5/8 Hardened Plain Washer

1шт.

14

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8 x 2-1/2

1шт.

15

700707783

CYLINDER

- Hydraulic, Tailgate

1шт.

7703838

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

5/16-18 x 1-3/4 C

2шт.
