(096) - HYDRAULIC, TENSION CONTROL, LEFT, ASSEMBLY, SERIAL NUMBER CFH0015275 AND ON

Запчасти Case IH 8450 (096) - HYDRAULIC, TENSION CONTROL, LEFT, ASSEMBLY, SERIAL NUMBER CFH0015275 AND ON (07) - HYDRAULICS

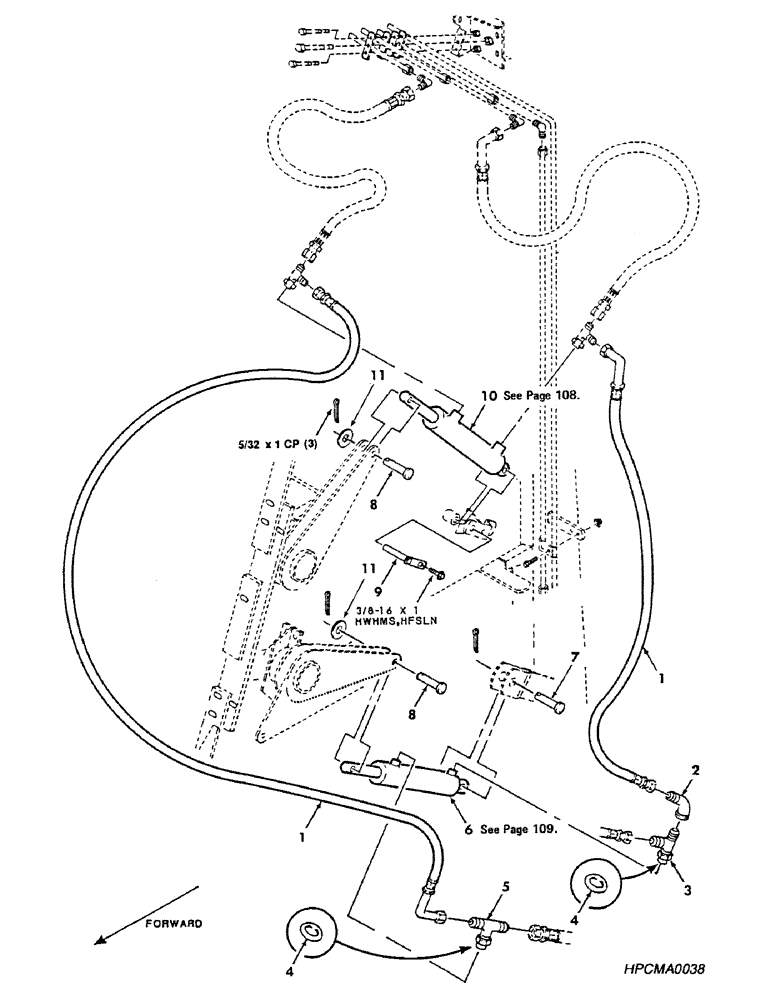

Схема запчастей Case IH 8450 - (096) - HYDRAULIC, TENSION CONTROL, LEFT, ASSEMBLY, SERIAL NUMBER CFH0015275 AND ON (07) - HYDRAULICS
5
9
3
4
11
1
2
10
11
8
6
1
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700707286

HOSE

- Hydraulic

2шт.

2

700702722

ELBOW

45 Degree Elbow

1шт.

3

8046658

TEE

- Straight Run (Includes O-Ring)

1шт.

4

738468

O-RING

2шт.

5

8746455

FITTING

Tee - Straight, Branch (Includes O-Ring)

1шт.

6

700708921

CYLINDER

- Hydraulic, Tensioner - Lower

1шт.

7

62653

CLEVIS PIN

5/8 x 3 Clevis Pin

1шт.

8

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8 x 2-1/2

2шт.

9

700118823

PIN

1шт.

10

700707262

CYLINDER

- Hydraulic, Tensioner - Upper

1шт.

11

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8 Hardened Plain Washer

2шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 x 1 HWHMS

1шт.
