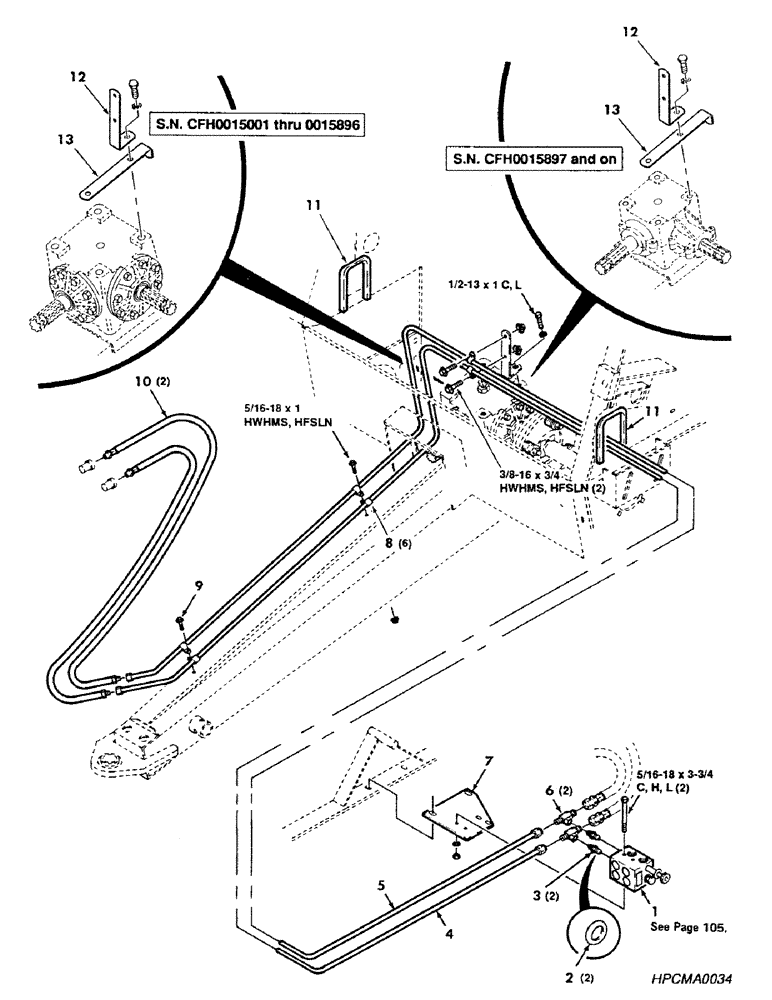

Запчасти Case IH 8450 (094) - HYDRAULIC ASSEMBLY, PRIMARY TO VALVE WITHOUT KICKER EJECTOR, SERIAL NUMBER CFH0015275 AND ON (07) - HYDRAULICS

1

700708923

VALVE

- Tensioner, Bale

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

3

846337

ROD, CONNECTING

Flared Connector (Includes O-Ring)

2шт.

4

700708920

TUBE

Line - Hydraulic

1шт.

5

700708919

TUBE

Line - Hydraulic

1шт.

6

700701752

3 WAY CONNECTION

Tee - Swivel, Branch

2шт.

7

700118983

SUPPORT

- Valve

1шт.

8

751487

CLAMP

- Line

6шт.

9

7702012

SELF-TAP SCREW,3/8" - 16 x 1"

3/8-16 x 1 HWHTCTS

1шт.

10

7072135

HYDRAULIC HOSE,0.50" ID x 58.00", SAE 100R2

Hose - Hydraulic

2шт.

11

700117735

ADHESIVE STRIP

Trim - Rubber

2шт.

12

700116032

STRAP

- Support, Line (S.N. CFH0015765 thru 0015896)

1шт.

12

700116032

STRAP

- Support, Line (S.N. CFH0015897 and on)

1шт.

13

700121773

SUPPORT

(S.N. CFH0015765 thru 0015896)

1шт.

13

700126397

SUPPORT

(S.N. CFH0015897 and on)

1шт.

873018

BOLT,5/16" - 18 x 3 3/4", Gr 5

5/16-18 x 3-3/4 C

2шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 x 1 C

1шт.

7771769

BOLT

1/2-13 x 3/4 C

1шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

1шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

2шт.
