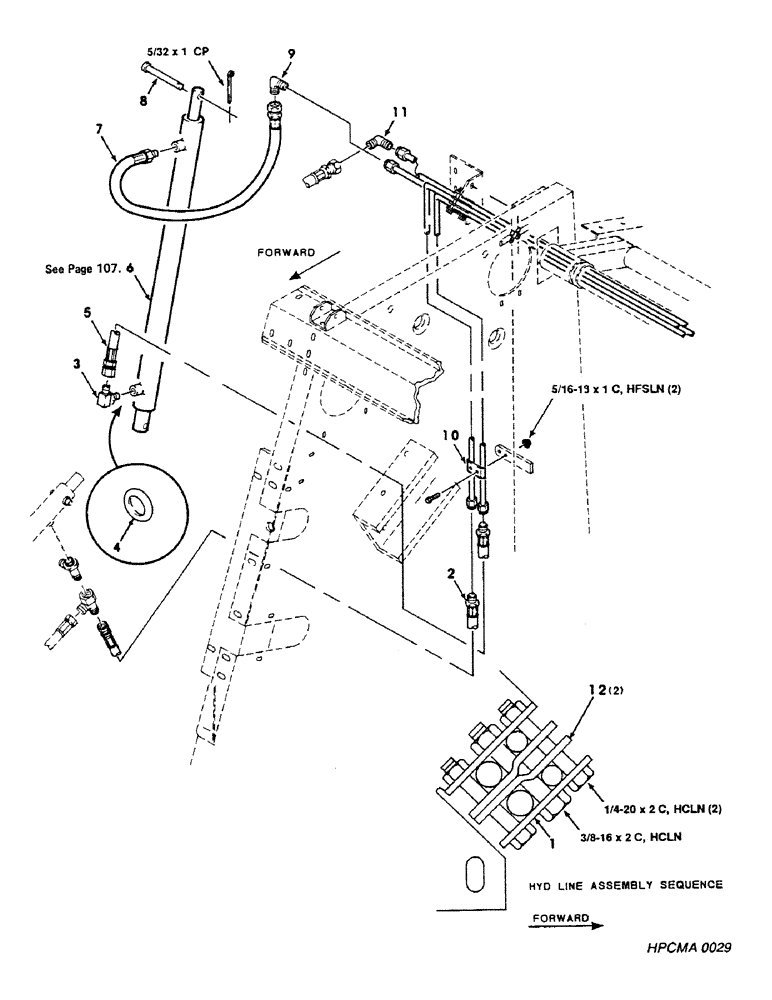

Запчасти Case IH 8450 (092) - HYDRAULIC, TAILGATE, RIGHT, ASSEMBLY, SERIAL NUMBER CFH0015001 THROUGH 0015274 (07) - HYDRAULICS

1

700118602

STRAP

- Line

3шт.

2

700707277

HOSE

- Hydraulic

1шт.

3

7746555

ELBOW

90 Degree Elbow (Includes O-Ring)

2шт.

4

738468

O-RING

1шт.

5

700708712

HYDRAULIC HOSE,9.65 mm ID x 560.00 mm, SAE 100R2

9.65 mm ID x 560.00 mm, SAE 100R2

1шт.

6

700707783

CYLINDER

- Hydraulic, Tailgate

1шт.

7

700708714

HOSE ASSY.

Hose - Hydraulic

1шт.

8

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

1шт.

9

7046626

ELBOW

- 90 Degree

2шт.

10

700116034

CLAMP

- Line

1шт.

11

791038

ELBOW

- 90 Degree

1шт.

12

700118605

STRAP

2шт.

7701485

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1/4-20 x 2 C

2шт.

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 x 1 C

2шт.

7700073

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

3/8-16 x 2 C

1шт.

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

1/4-20 HCLN

2шт.

704635

NUT

3/8-16 HCLN

1шт.
