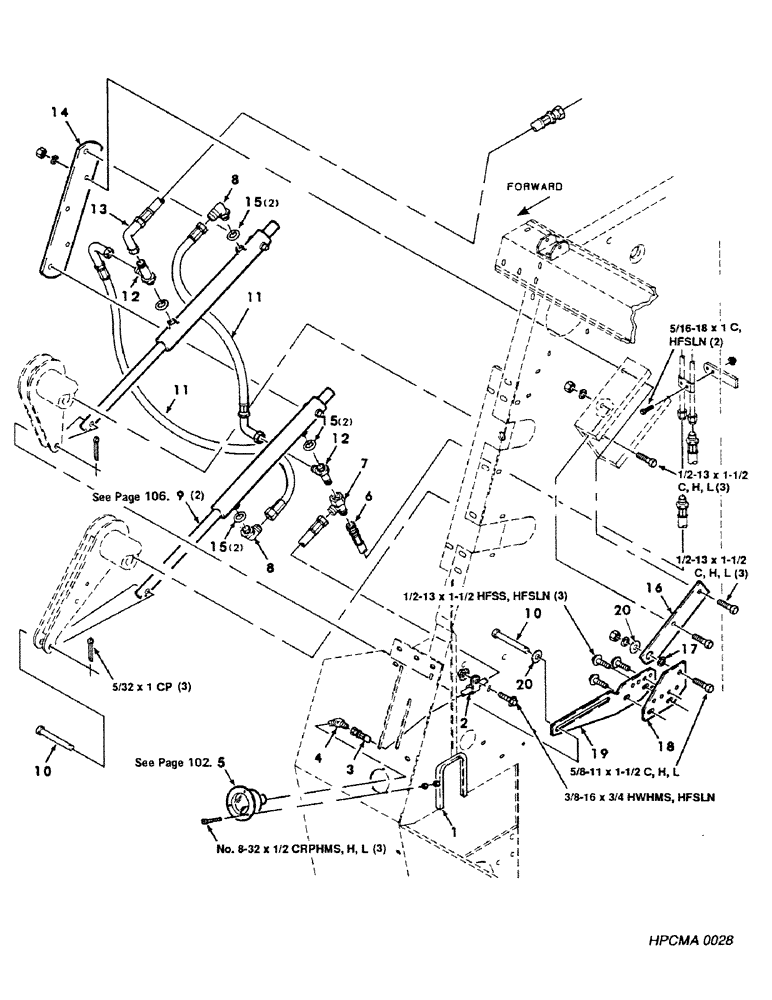

Запчасти Case IH 8450 (090) - HYDRAULIC, TENSION CONTROL, RIGHT, ASSEMBLY, SERIAL NUMBER CFH0015001 THROUGH 0015274 (07) - HYDRAULICS

1

700117735

ADHESIVE STRIP

Trim - Rubber

1шт.

2

751487

CLAMP

- Line

1шт.

3

1714633

HOSE ASSY.

Hose - Hydraulic

1шт.

4

8046666

FITTING

Elbow Connector - 90 Degree

1шт.

5

700707986

GAUGE

- Pressure

1шт.

6

700707277

HOSE

- Hydraulic

1шт.

7

700701550

3 WAY CONNECTION

Tee

1шт.

8

7746555

ELBOW

90 Degree Elbow (Includes O-Ring)

2шт.

9

700707784

CYLINDER

- Hydraulic

2шт.

10

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

2шт.

11

700707286

HOSE

- Hydraulic

2шт.

12

8046658

TEE

(Includes O-Ring)

2шт.

13

700707279

HOSE

- Hydraulic

1шт.

14

700116031

PLATE

- Tie

1шт.

15

738468

O-RING

4шт.

16

700118821

PLATE

1шт.

17

700118822

SPACER

1шт.

18

700118820

PLATE

1шт.

19

700118819

PLATE

1шт.

20

705632

WASHER

5/8 Narrow Plain Washer

2шт.

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 x 1 C

2шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 C

6шт.

7701758

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 x 1-1/2 C

1шт.

7701592

FLANGE BOLT,Hex Serr, 1/2" - 13 x 1"

1/2-13 x 1 HFSS

3шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

1шт.

700705185

SCREW,Cross Pan Hd, #8-32 x 1/2"

No. 8-32 x 1/2 CRPHMS

3шт.
