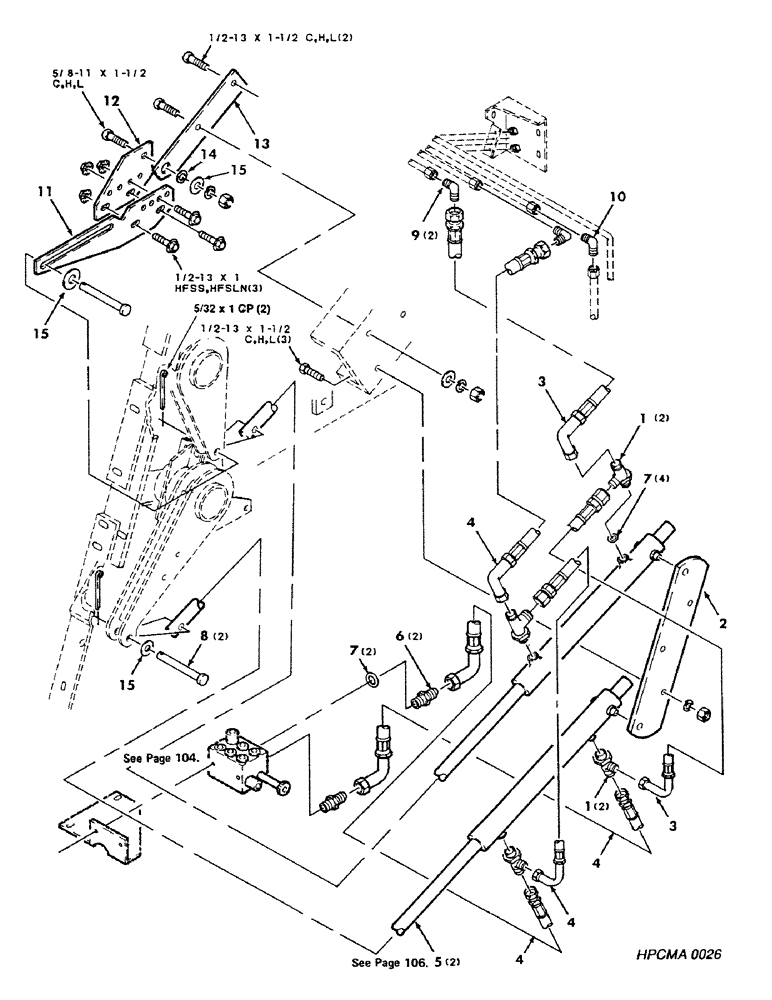

Запчасти Case IH 8450 (086) - HYDRAULIC, TENSION CONTROL, LEFT, ASSEMBLY, SERIAL NUMBER CFH0015001 THROUGH 0015274 (07) - HYDRAULICS

1

8046658

TEE

with O-Ring

4шт.

2

700116031

PLATE

- Tie

1шт.

3

700707286

HOSE

- Hydraulic

2шт.

4

700707279

HOSE

- Hydraulic

4шт.

5

700707784

CYLINDER

- Hydraulic

2шт.

6

846634

COUPLING, BREAK AWAY

Connector - Flared (Includes O-Ring)

2шт.

7

738468

O-RING

6шт.

8

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8 x 2-1/2

2шт.

9

791038

ELBOW

- 90 Degree

2шт.

10

7046626

ELBOW

1шт.

11

700118819

PLATE

1шт.

12

700118820

PLATE

1шт.

13

700118821

PLATE

1шт.

14

700118822

SPACER

1шт.

15

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

5/8 Narrow Plain Washer

3шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 C

3шт.

7701758

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 x 1-1/2 C

1шт.

7701592

FLANGE BOLT,Hex Serr, 1/2" - 13 x 1"

1/2-13 x 1 HFSS

3шт.
