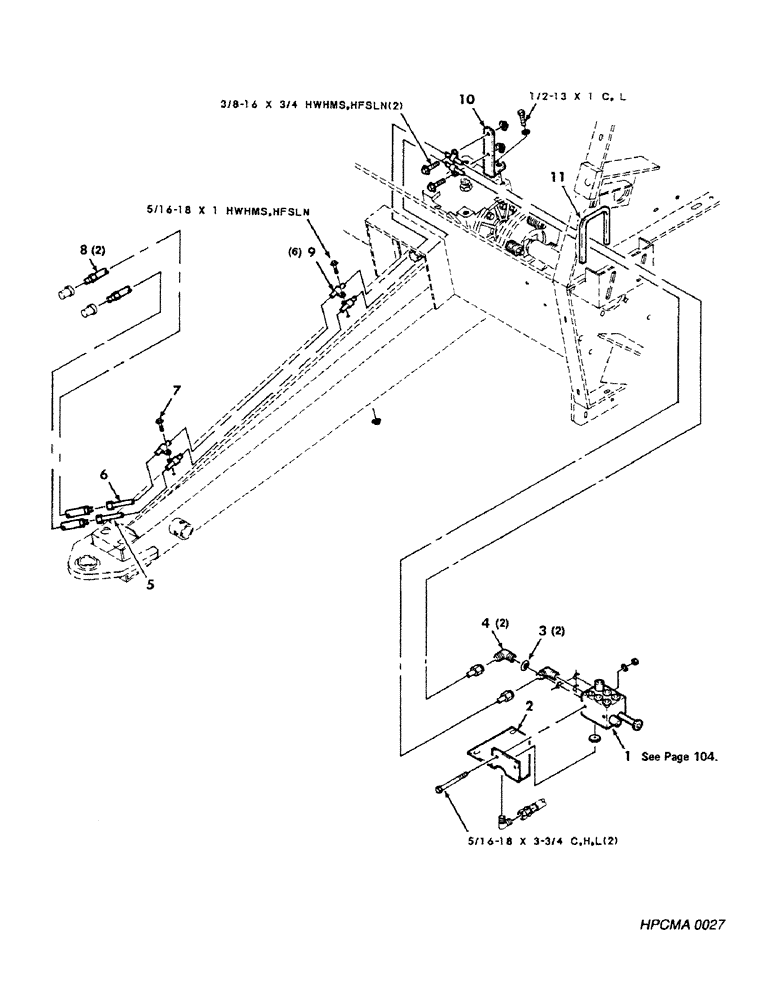

Запчасти Case IH 8450 (084) - HYDRAULIC, PRIMARY TO VALVE, ASSEMBLY, SERIAL NUMBER CFH0015001 THROUGH 0015274 (07) - HYDRAULICS

1

700707256

VALVE

- Tensioner, Bale

1шт.

2

700117087

SUPPORT

- Valve

2шт.

3

7037781

O-RING

2шт.

4

700701358

ELBOW

90 Degree Elbow (Includes O-Ring)

2шт.

5

700707259

LINE

- Hydraulic

1шт.

6

700707260

LINE

- Hydraulic

1шт.

7

7702012

SELF-TAP SCREW,3/8" - 16 x 1"

3/8-16 x 1 HWHTCTS

1шт.

8

7072135

HYDRAULIC HOSE,0.50" ID x 58.00", SAE 100R2

Hose - Hydraulic

2шт.

9

751487

CLAMP

- Line

6шт.

10

700116032

STRAP

- Support

1шт.

11

700117736

ADHESIVE STRIP

Trim - Rubber

1шт.

873018

BOLT,5/16" - 18 x 3 3/4", Gr 5

5/16-18 x 3-3/4 C

2шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 x 1 C

1шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

5/16-18 x 1 HWHMS

1шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

2шт.
