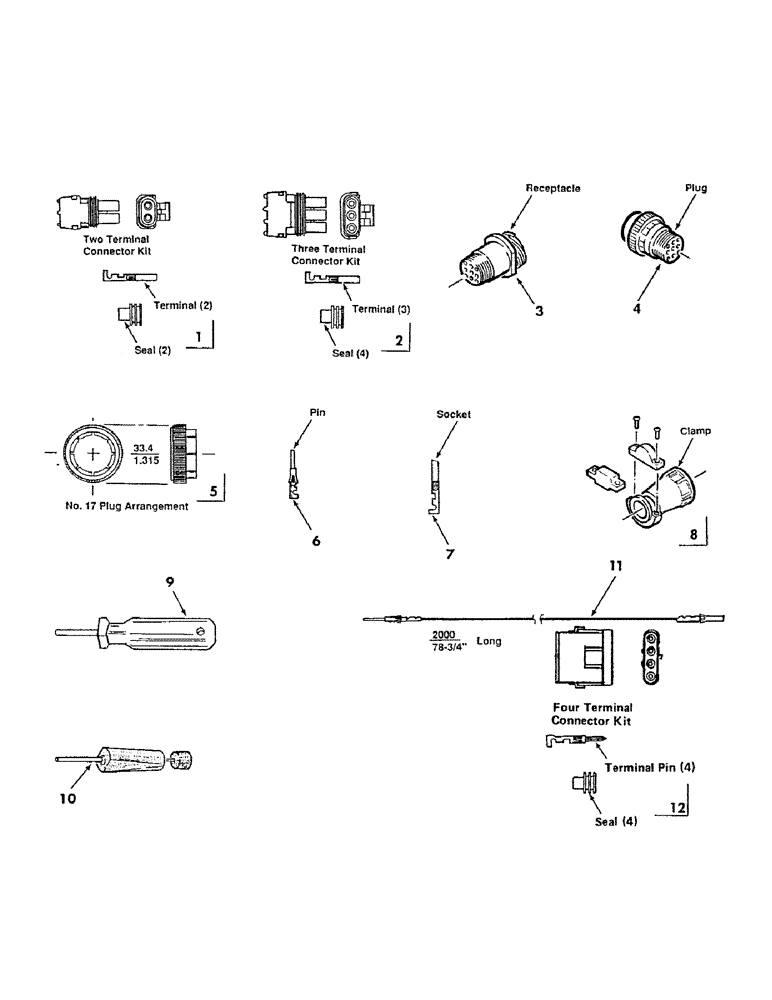

Запчасти Case IH 8450 (127) - ELECTRIC, SERVICE PARTS, KITS (06) - ELECTRICAL

1

700706999

REPAIR KIT

Kit - Harness Repair (Two Terminal Tower) Connector and Seal Assembly

1шт.

2

700707001

REPAIR KIT

Kit - Harness Repair (Three Terminal Tower) Connector and Seal Assembly

1шт.

3

700708754

CONTAINER

Receptacle - 17-16 Arrangement

1шт.

4

700708755

ROD, CONNECTING

Plug - 17-16 Arrangement

1шт.

5

700707819

LOCKING RING

Ring - Coupling

1шт.

6

700708757

ELEC. TERMINAL PIN,18 - 16 SAE

Type III + Pin (Wire Size 18-16)

1шт.

7

700708758

TERMINAL

Type III + Socket (Wire Size 18-16)

1шт.

8

700708756

CLAMP

- Cable (Shell Size 17)

1шт.

9

700707012

TERMINAL CONNECTOR

Repair Tool - 2 and 3 Pin Connector

1шт.

10

700707013

TOOL

Repair Tool - Connector

1шт.

11

700708333

WIRE

- Test

1шт.

12

700709354

REPAIR KIT

Kit - Harness Repair

1шт.
