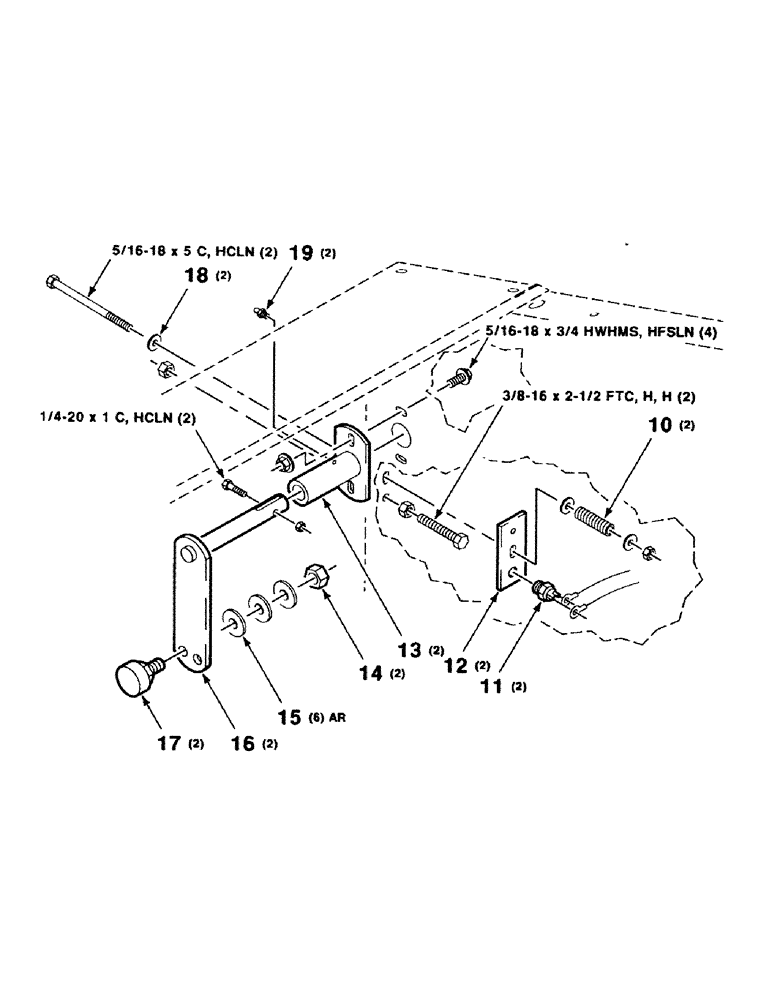

Запчасти Case IH 8450 (122) - BALE SHAPE SENSOR ASSEMBLY, CONTINUED FROM PAGE 121 (06) - ELECTRICAL

10

7058266

SPRING

2шт.

11

8025637

SWITCH

- Sensor

2шт.

12

700116155

PLATE

- Switch

2шт.

13

700116140

SUPPORT

2шт.

14

702700045

LOCK NUT

1/2-20 Nut - Spiralock

2шт.

15

495-11053

WASHER,1/2", SAE

1/2 Narrow Plain Washer

6шт.

16

700116156

CRANK

- Bearing, Cam

2шт.

17

700705612

CAM FOLLOWER

Bearing - Cam

2шт.

18

705525

WASHER

5/16 Narrow Plain Washer

6шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 x 1 C

2шт.

73858

SCREW

5/16-18 x 5 C

2шт.

873141

BOLT

3/8-16 x 2-1/2 FTC

2шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

4шт.

430-4214

1/4-20 HCLN

2шт.

704619

SUPPORT

5/16-18 HCLN

2шт.
