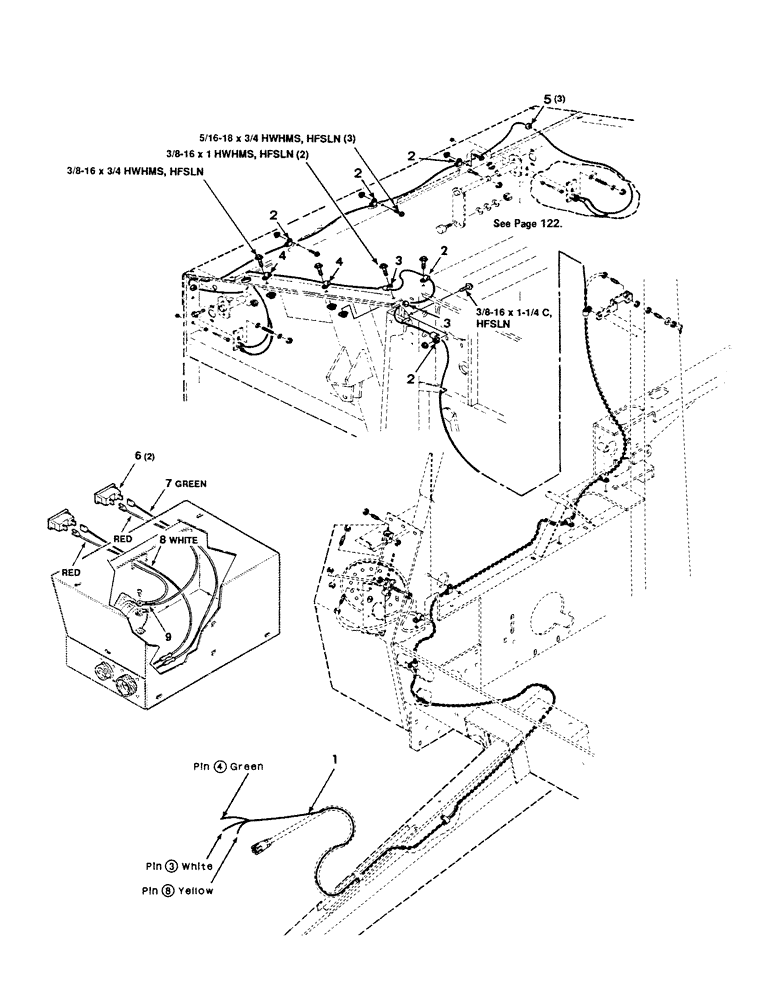

Запчасти Case IH 8450 (120) - BALE SHAPE MONITOR, DRIVING LIGHT, KIT (06) - ELECTRICAL

HK50452

Bale Shape Monitor (Driving Light) Kit Complete

1шт.

1

700707361

HARNESS

- Wire

1шт.

2

700708090

CLAMP

- Line

5шт.

3

700708340

GROMMET

1шт.

4

751628

CLAMP

- Line

3шт.

5

7827983

GROMMET

3шт.

6

700707459

INDICATOR

Lamp - Monitor

2шт.

7

700707755

ELECTRICAL WIRE

Wire - Electric, Green

1шт.

8

700707756

ELECTRICAL WIRE

Wire - Electric, White

1шт.

9

700707750

ASSEMBLY

Wire - Electric, Red

1шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

1шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

3шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

1шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 x 1 HWHMS

2шт.
