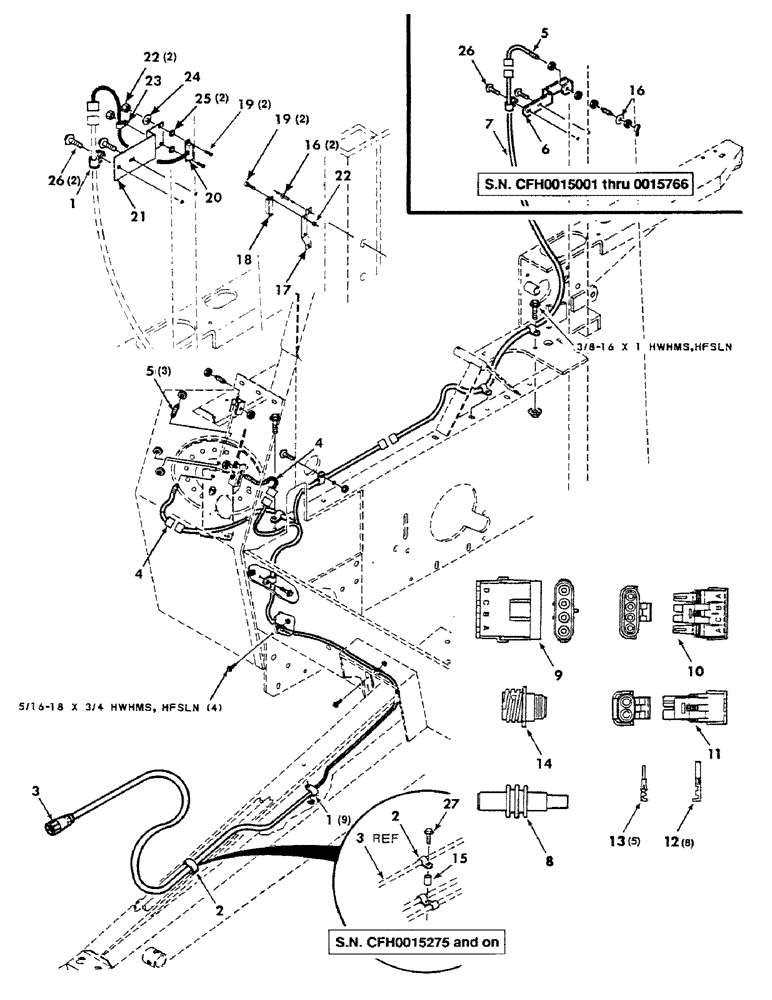

Запчасти Case IH 8450 (042) - ELECTRICAL SENSOR AND ACTUATOR ASSEMBLY, SERIAL NUMBER CFH0015275 AND ON (06) - ELECTRICAL

1

751487

CLAMP

9шт.

2

755744

CLAMP

1шт.

3

700708971

HARNESS

- Wiring, Front

1шт.

4

700119161

SWITCH

Assembly (S.N. CFH0015001 thru 0015766)

3шт.

4

700119161

SWITCH

Assembly (S.N. CFH0015767 and on)

2шт.

5

700710211

ACTUATOR

Switch Assembly

2шт.

6

700116136

SUPPORT

- Switch (S.N. CFH0015001 thru 0015766)

1шт.

7

700708970

HARNESS

- Wiring, Rear

1шт.

8

700708965

PLUG

1шт.

9

700708964

WIRE CONNECTOR

Connector - Male

1шт.

10

700708963

WIRE CONNECTOR

Connector - Female

1шт.

11

700708761

ELEC CONNECTOR,Female

Connector - Female

2шт.

12

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

- Sleeve, Female

8шт.

13

700708757

ELEC. TERMINAL PIN,18 - 16 SAE

Pin

5шт.

14

700708079

WIRE CONNECTOR

Receptacle

1шт.

15

158758

SPACER

(S.N. CFH0015767 and on)

1шт.

16

705657

WASHER

3/8 Narrow Plain Washer

6шт.

17

700122574

SUPPORT

- Actuator

1шт.

18

700709996

SWITCH

Actuator

1шт.

19

700710188

SCREW

No. 6-32 x 3/4 CRPHMS

4шт.

20

700710208

ROTARY SWITCH

Switch Assembly

1шт.

21

700122570

SUPPORT

- Switch

1шт.

22

700710189

LOCK NUT

No. 6-32 LHSN

4шт.

23

700710448

CLAMP

- Line

1шт.

24

700710187

WASHER

No. 6 Plain Washer

4шт.

25

700710199

GROMMET

2шт.

26

701953

SELF-TAP SCREW

5/16-18 x 3/4 HWHTCTS

2шт.

27

73528

SELF-TAP SCREW

3/8-16 x 1-1/2 HWHTCTS

1шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

4шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 x 1 HWHMS

1шт.
