(040) - ELECTRICAL SENSOR AND ACTUATOR ASSEMBLY, SERIAL NUMBER CFH0015001 THROUGH 0015274

Запчасти Case IH 8450 (040) - ELECTRICAL SENSOR AND ACTUATOR ASSEMBLY, SERIAL NUMBER CFH0015001 THROUGH 0015274 (06) - ELECTRICAL

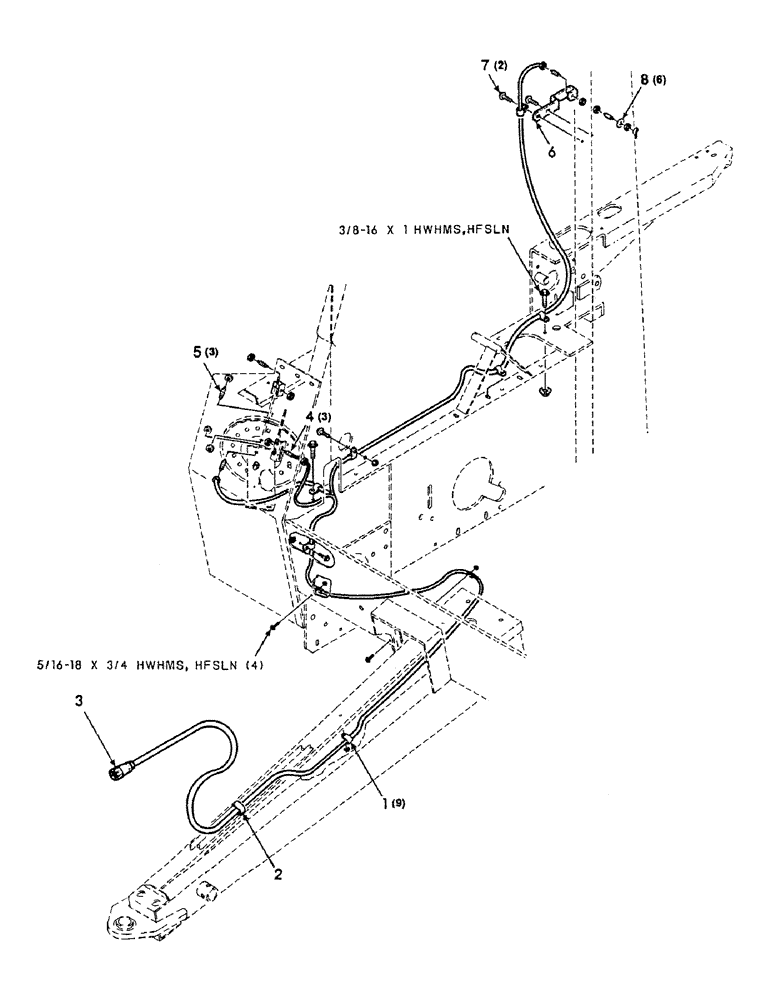

Схема запчастей Case IH 8450 - (040) - ELECTRICAL SENSOR AND ACTUATOR ASSEMBLY, SERIAL NUMBER CFH0015001 THROUGH 0015274 (06) - ELECTRICAL
6
7
3
5
4
2
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

751487

CLAMP

9шт.

2

722470

MOUNTING CLIP

Tie - Nylon

1шт.

3

700707362

HARNESS

- Wiring

1шт.

4

700707353

SENSOR

3шт.

5

700707354

CONNECTION,ELECTRIC

Actuator

2шт.

6

700116136

SUPPORT

- Switch

1шт.

7

701953

SELF-TAP SCREW

5/16-18 x 3/4 HWHTCTS

2шт.

8

705657

WASHER

3/8 Narrow Plain Washer

6шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

4шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 x 1 HWHMS

1шт.
