(117) - GATHERING WHEEL SUPPORT ASSEMBLIES, SERIAL NUMBER CFH0015001 THROUGH 0015274

Запчасти Case IH 8450 (117) - GATHERING WHEEL SUPPORT ASSEMBLIES, SERIAL NUMBER CFH0015001 THROUGH 0015274 Pickup

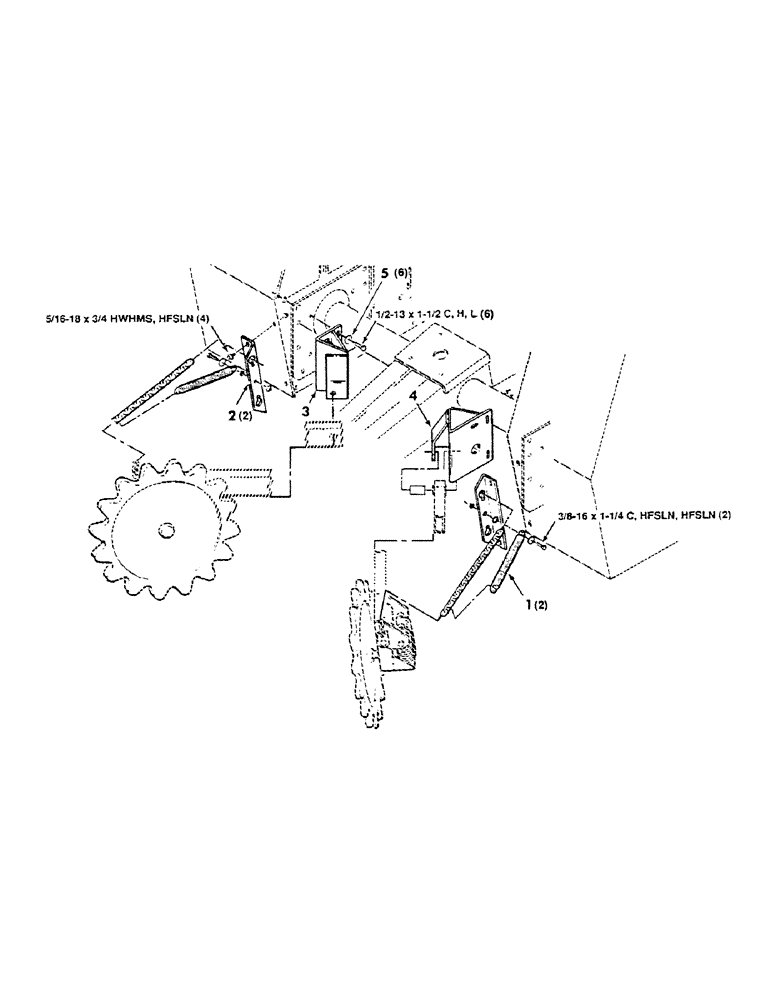

Схема запчастей Case IH 8450 - (117) - GATHERING WHEEL SUPPORT ASSEMBLIES, SERIAL NUMBER CFH0015001 THROUGH 0015274 Pickup
5
1
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

51200296

SPRING

- Tension (S.N. CFH0015001 thru CFH0015274)

2шт.

1

700708977

SPRING

- Tension (S.N. CFH0015275 and on)

2шт.

2

700117014

ANGLE

- Bracket (S.N. CFH0015001 thru 0015274)

2шт.

2

700119167

ANGLE

- Bracket (S.N. CFH0015275 and on)

2шт.

3

700117016

SUPPORT

- Pivot, Right

1шт.

4

700117015

SUPPORT

- Pivot, Left

1шт.

5

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 Hardened Plain Washer

6шт.
