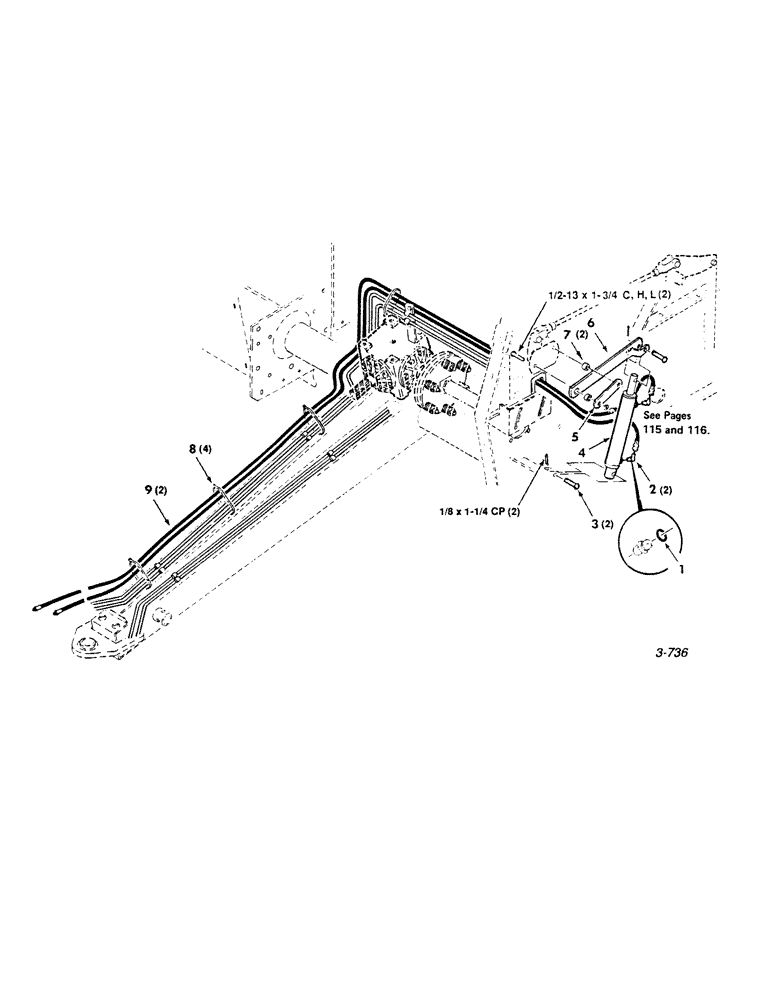

Запчасти Case IH 8450 (114) - PICKUP LIFT, HYDRAULIC, KIT Pickup

HK50446

ATTACHMENT

Pickup Lift (Hydraulic) Kit Complete

1шт.

1

738468

O-RING

2шт.

2

7746555

ELBOW

90 Degree Elbow (Includes O-Ring)

2шт.

3

63495

CLIP

5/8 x 2-1/2 Clevis Pin

2шт.

4

700707410

CYLINDER

- Hydraulic Pickup (See Page 115)

1шт.

4

700709416

CYLINDER

- Hydraulic Pickup (See Page 116)

1шт.

5

700116172

PLATE

1шт.

6

700116173

LEVER

1шт.

7

6287155

SPACER

2шт.

8

722470

MOUNTING CLIP

Tie - Cable

4шт.

9

700704624

HOSE

- Hydraulic

2шт.

703983

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 C

2шт.
