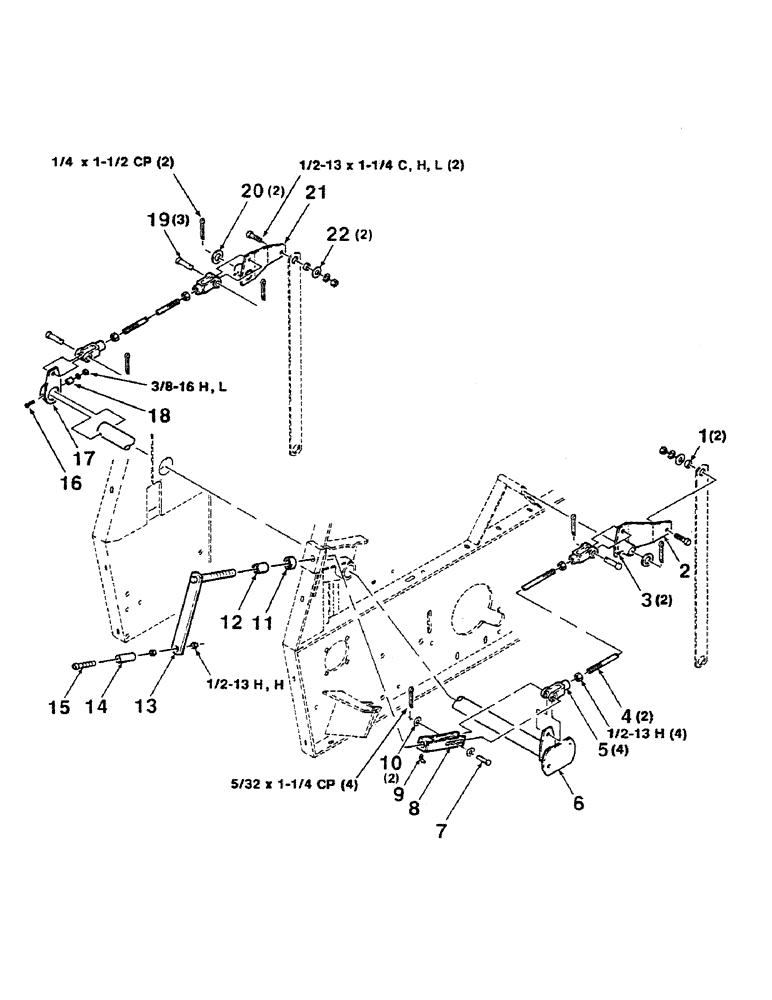

Запчасти Case IH 8450 (032) - PICKUP LIFT ASSEMBLY Pickup

1

51200240

BUSHING

2шт.

2

700114185

CRANK

Bellcrank - Left

1шт.

REFER ITEM NO. 2....IF DEALER IS LOOKING FOR AN S SHAPE 1/2" ROD TO KEEP TWINE IN PLACE REFER TO PART NO. 700114407 SHOWN WITH LOWER ROLLLER.

1шт.

3

77032

FITTING

1/4-28 Zerk

2шт.

4

700114196

STEM

Rod - Link

2шт.

5

066183

CLEVIS

- 1/2-13 Thread

4шт.

6

700114176

TUBE

Tub Assembly - Torque

1шт.

7

63966

PIN

1/2 x 2 Clevis Pin

1шт.

8

700114190

CLEVIS

1шт.

9

77057

1/4-28 x 90 Degree Zerk

1шт.

10

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 Hardened Plain Washer

2шт.

11

700707873

THRUST BEARING

Bearing - Thrust

1шт.

12

6292387

SPACER,31.75 mm OD, 44.5 mm Length

1шт.

13

700114193

CRANK

Arm - Crank

1шт.

14

700114197

TUBE,21 mm ID, 25.4 mm OD, 72 mm Length

- Crank

1шт.

15

73205

SCREW

1/2-13 x 3-1/2 HSHCS

1шт.

16

702019

SCREW

3/8-16 x 4 HSHCS

1шт.

17

700114183

LEVER

Arm - Torque, End

1шт.

18

6869382

SPACER

1шт.

19

63677

WASHER

1/2 x 1-27/64 Clevis Pin

3шт.

20

52258

BUSHING

1 x 14 Gauge Machinery Bushing

2шт.

21

700114186

CRANK

Bellcrank - Right

1шт.

22

700709605

WASHER,1/2"

1/2 Wide Plain Washer

2шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C

2шт.
