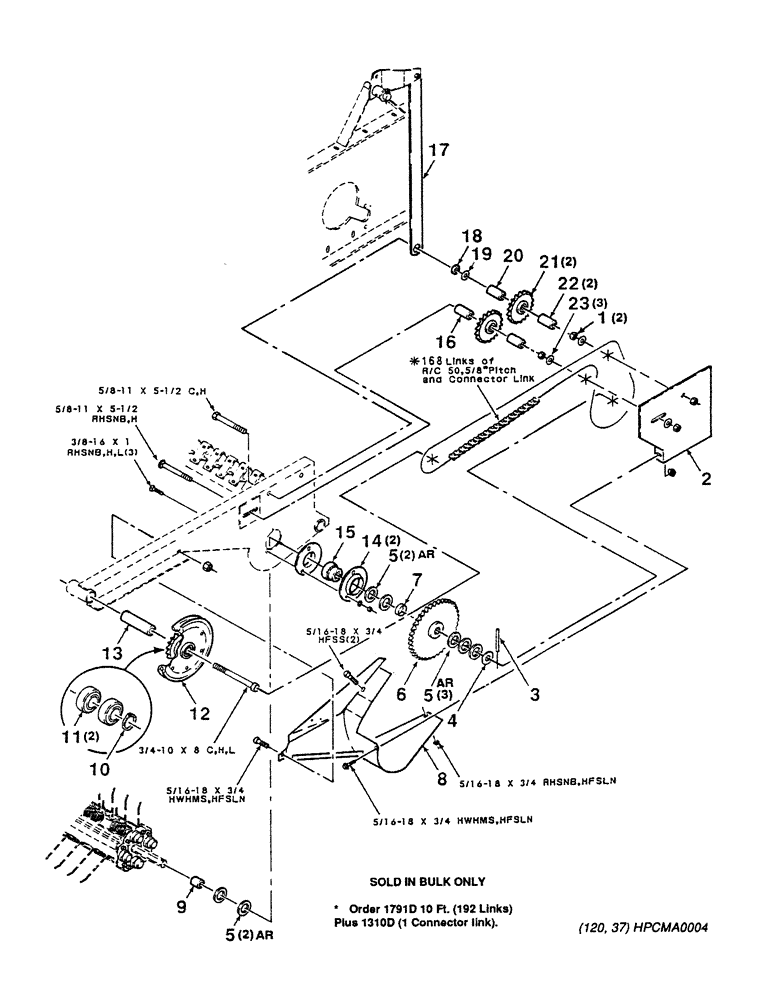

Запчасти Case IH 8450 (030) - PICKUP DRIVE, LEFT, ASSEMBLY Pickup

1

704155

NUT

5/8-11 Hex Jam Nut

2шт.

2

700114164

SHIELD

- Chain

1шт.

3

38-32436

PIN,3/8" x 2 1/4", Coiled

3/8" x 2 1/4", Coiled

1шт.

4

52712

BUSHING

1-1/2 x 18 Gauge Machinery Bushing

1шт.

5

NLS

NO LONGER SERVICED

1-1/2 x 14 Gauge Machinery Bushing

7шт.

6

700117122

SPROCKET ASSY.

Sprocket - 50-P, 35-Tooth

1шт.

7

395871

SPACER

1шт.

8

700114133

DEFLECTOR

- Left

1шт.

9

700114174

SPACER

1шт.

10

740712

OIL SEAL

Snap Ring

1шт.

11

712604

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

Bearing - Cylindrical

2шт.

12

700114166

PULLEY

Sheave and Sprocket Assembly

1шт.

13

700114171

TUBE,38.1 mm OD, 135.5 mm Length

Bushing - Pivot

1шт.

14

617863R1

FLANGED BEARING

- Bearing

2шт.

15

713834

BUSHING

- Spherical, Hex Bore

1шт.

16

6610844

SPACER

1шт.

17

700114170

STRAP

- Link, Pickup

1шт.

18

378521

SPACER

Bushing

1шт.

19

700709606

WASHER,5/8"

5/8 Wide Plain Washer

2шт.

20

6156871

SPACER

1шт.

21

87973

GROOVED PIN

Sprocket - Idler, 50-P, 17-Tooth

2шт.

22

700114929

TUBE,31.75 mm OD, 41 mm Length

Spacer

2шт.

23

705582

WASHER

5/8 Hardened Plain Washer

3шт.

703934

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 x 5-1/2 C

1шт.

7883069

HARDWARE

3/4-10 x 8C

1шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

1шт.

700047

BOLT

3/8-16 x 1 RHSNB

3шт.

7870603

BOLT,Sq Nk, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 x 5-1/2 RHSNB

1шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

2шт.

703132

SERRATED SCREW

5/16-18 x 3/4 HFSS

1шт.
