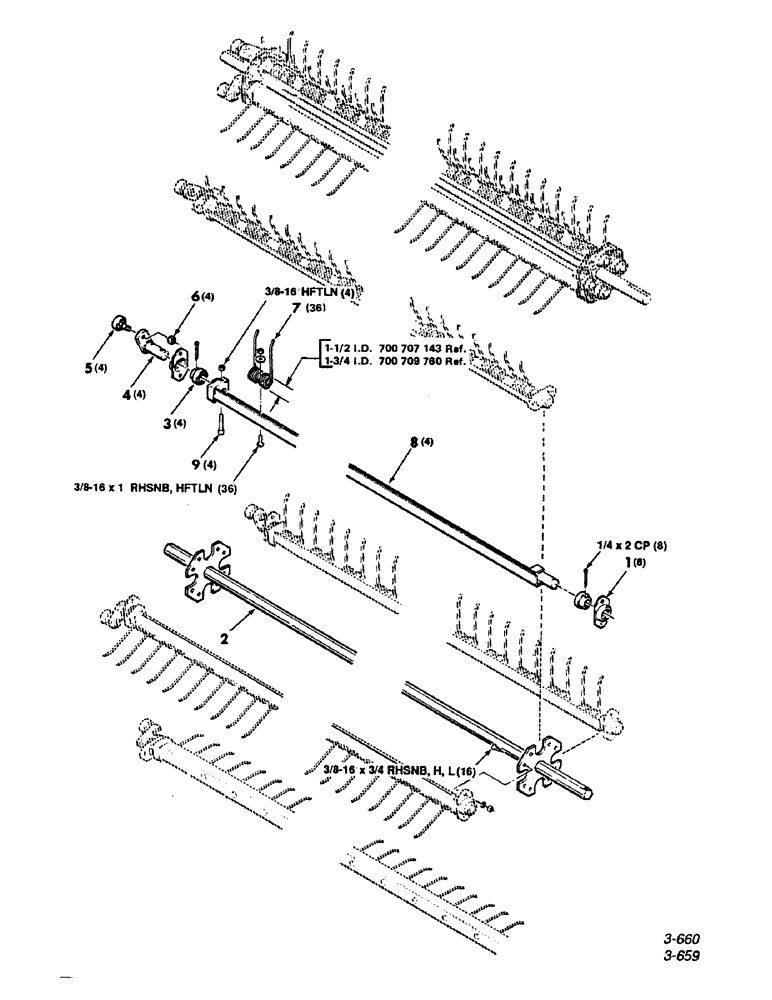

Запчасти Case IH 8450 (026) - PICKUP, TINE, ASSEMBLY Pickup

1

700108622

FLANGED BEARING

Flange - Bearing

8шт.

2

700114147

ROTOR

Shaft - Rotor

1шт.

3

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

Bearing - Spherical

8шт.

4

700108618

ARM

Crank - Tine Bar

4шт.

5

700705612

CAM FOLLOWER

Bearing - Cam

4шт.

6

702700045

LOCK NUT

- Spiralock

4шт.

7

700707143

TINE

- Double (S.N. CFH0015001 thru 0015766) Mating Part (Diameter) for the 700114154 Bar.

36шт.

7

700709760

TINE

Tine - Double (S.N. CFH0015767 and on) Mating Part (Diameter) for the 700120390 Bar

36шт.

8

700114154

ANGLE

Bar - Tine (S.N. CFH0015001 thru 0015766) Sub 700120390 Bar, 700709760 Tine (9) and 3/8-16 HFTLN (9)

4шт.

8

700120390

ANGLE BAR

Bar - Tine (S.N. CFH0015767 and on) 700709760 Tines are Mating Parts

1шт.

9

701367

HEX SOC SCREW,3/8"-16 x 2 1/4"

3/8-16 x 2-1/4 HSHCS

4шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

16шт.

700047

BOLT

3/8-16 x 1 RHSNB

36шт.

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN

40шт.
