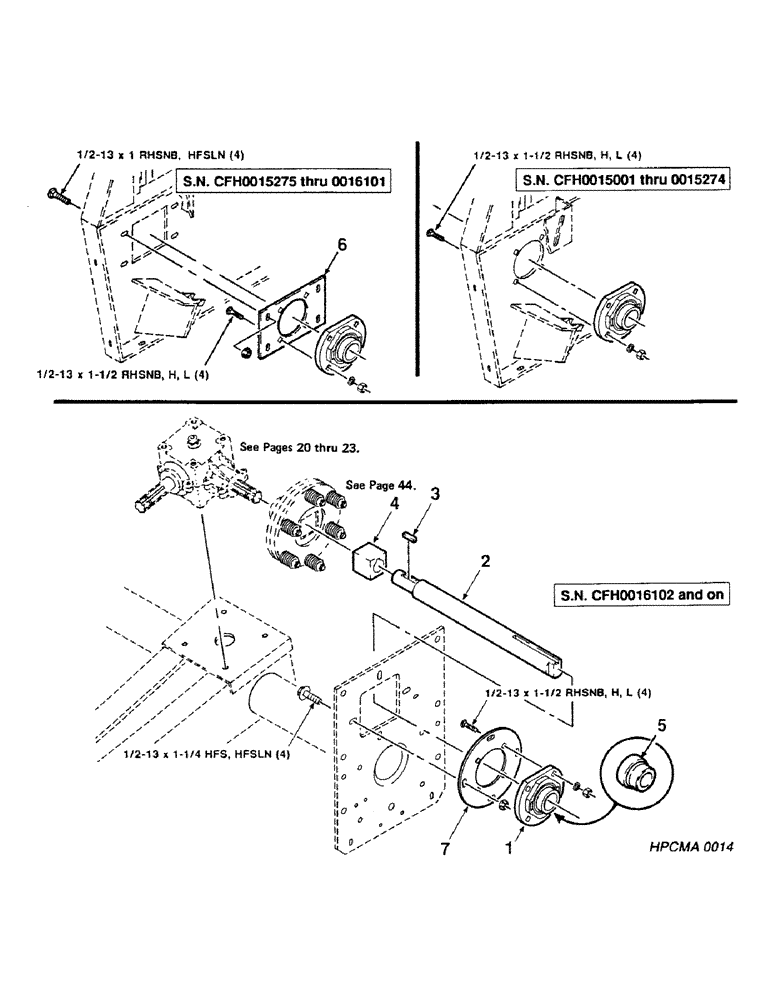

Запчасти Case IH 8450 (045) - DRIVE SHAFT, CLUTCH, ASSEMBLY Driveline

1

700109753

BEARING ASSY,97 mm ID x 108 mm OD x 33 mm

Bearing Assembly

1шт.

2

700116057

SHAFT

- Cross

1шт.

3

6872915

KEY

5/16 x 5/16 x 1-1/2 Key

1шт.

4

700102113

HUB

- Block

1шт.

5

712158

SPHERICAL BEARING,2" ID x 100 mm OD

Bearing - Spherical

1шт.

6

700119086

PLATE

(S.N. CFH0015275 thru 0016101)

1шт.

7

700126762

PLATE

(S.N. CFH0016102 and on)

1шт.

7700156

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 RHSNB

4шт.

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 RHSNB

4шт.

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 x 1-1/4 HFS

4шт.
