Запчасти Case IH 8450 (021) - GEARBOX Driveline

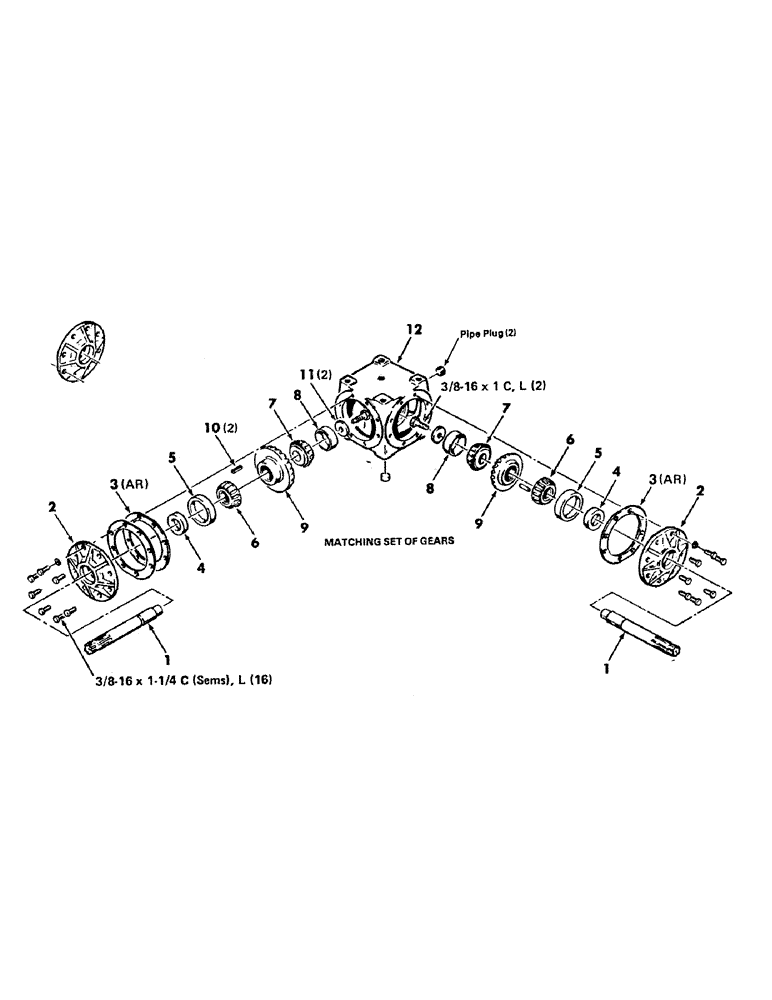

Схема запчастей Case IH 8450 - (021) - GEARBOX Driveline
4
2
7
7
4
11
1
9
10
6
8
5
5
6
3
2
8
1
12
3
9

Артикул

Название

Примечание

Количество

700709190

GEARBOX ASSY

Gearbox Complete - Primary

1шт.

1

700709400

SHAFT

2шт.

2

700709192

CAP

Assembly (With Cup and Seal)

2шт.

3

806950

GASKET

- .003

1шт.

NOTE: Caps supporting the input and output shafts are ribbed. If so, order component parts from this page.

1шт.

806943

GASKET

- .005

1шт.

NOTE: Caps supporting the input and output shafts are ribbed. If so, order component parts from this page.

1шт.

806935

GASKET

- .015

1шт.

NOTE: Caps supporting the input and output shafts are ribbed. If so, order component parts from this page.

1шт.

4

800383

SEAL

- Oil

2шт.

5

7710106

DIFFERENTIAL

Bearing Cup

2шт.

6

7710114

BEARING

Cone

2шт.

7

800334

ROLLER BEARING,29.38 mm ID x 25.433 mm

Bearing Cone

2шт.

8

800342

BEARING CUP,66.421 mm OD x 19.05 mm

Cup

2шт.

9

800359

GEAR

1шт.

10

700709193

KEY

- Special

2шт.

11

700709419

WASHER

- Special

2шт.

12

700709191

BOX

Assembly (With Bearing Cup)

1шт.

13

800243

SHIM

- .010

1шт.

NOTE: Caps supporting the input and output shafts are ribbed. If so, order component parts from this page.

1шт.

800250

SHIM

- .005

1шт.

NOTE: Caps supporting the input and output shafts are ribbed. If so, order component parts from this page.

1шт.

800268

SHIM

- .002

1шт.

NOTE: Caps supporting the input and output shafts are ribbed. If so, order component parts from this page.

1шт.

14

800318

GEAR

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

2шт.

800417

SCREW

3/8-16 x 1-1/4 C (Sems) Grade 5

16шт.

Выбрано товаров: 27
