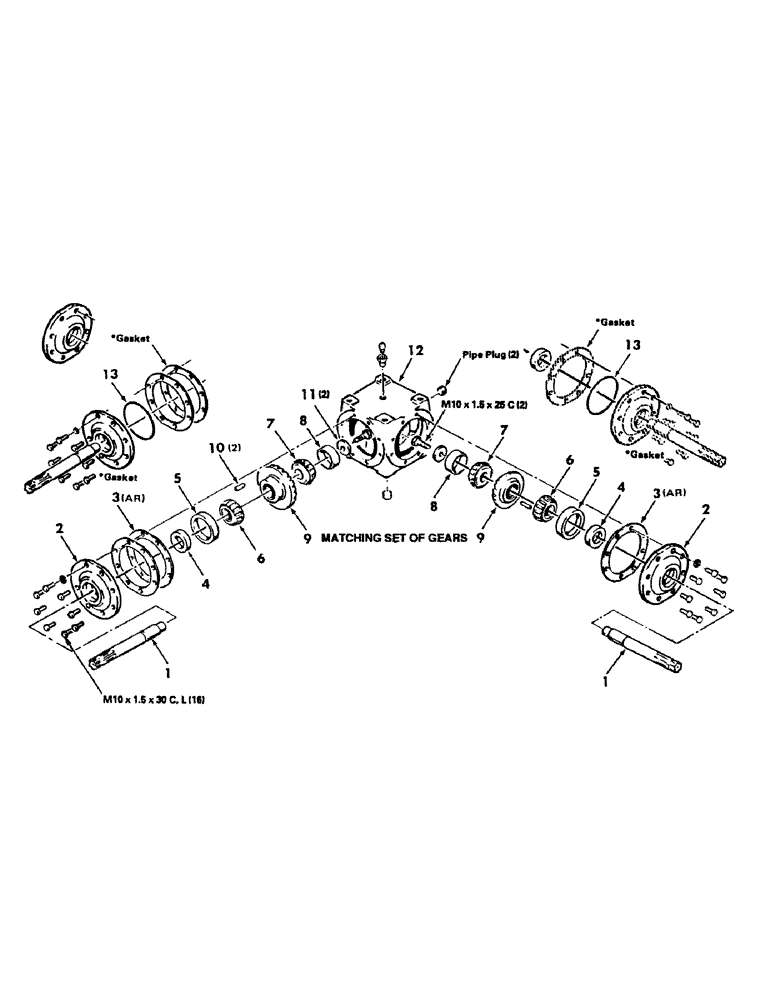

Запчасти Case IH 8450 (020) - GEARBOX Driveline

6500540

GEARBOX

Complete - Primary

1шт.

1

6501803

SHAFT

2шт.

2

6500581

CAP ASSY.

Cap Assembly (With Cup and Seal)

2шт.

3

806968

GASKET

- .002

1шт.

NOTE: Caps supporting the input and output shafts are not ribbed, If so, order component parts from this page. NOTE: The O-Ring is used in gearbox assemblies by some manufacturers to insure sealing. Not all gearboxes require the O-Ring seal and do not have it installed. However, the 700 700 048 O-Ring may be installed on all end caps eith groove ring.

1шт.

806943

GASKET

- .005

1шт.

NOTE: Caps supporting the input and output shafts are not ribbed, If so, order component parts from this page. NOTE: The O-Ring is used in gearbox assemblies by some manufacturers to insure sealing. Not all gearboxes require the O-Ring seal and do not have it installed. However, the 700 700 048 O-Ring may be installed on all end caps eith groove ring.

1шт.

806935

GASKET

- .015

1шт.

NOTE: Caps supporting the input and output shafts are not ribbed, If so, order component parts from this page. NOTE: The O-Ring is used in gearbox assemblies by some manufacturers to insure sealing. Not all gearboxes require the O-Ring seal and do not have it installed. However, the 700 700 048 O-Ring may be installed on all end caps eith groove ring.

1шт.

4

7744543

SEAL

Seal - Oil

2шт.

5

7710106

DIFFERENTIAL

Bearing Cup

2шт.

6

7710114

BEARING

Cone

2шт.

7

800334

ROLLER BEARING,29.38 mm ID x 25.433 mm

Bearing Cone

2шт.

8

800342

BEARING CUP,66.421 mm OD x 19.05 mm

Cup

2шт.

9

6502157

GEAR

Matched Set of Gears (20-Tooth and 27-Tooth)

1шт.

10

861211

KEY

- Special

2шт.

11

6501795

WASHER

- Special

2шт.

12

6500607

TRANSFER BOX

Box Assembly (With Bearing Cup)

1шт.

13

700700048

O-RING

(5.714 I.D.)

2шт.

14

846642

BUSHING

1/2 NPTF x 1/8 NPTF, Reducer Bushing

1шт.

700708349

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

M10 x 1.5 x 25 Hex Cap Screw Grade 5

2шт.

700708350

SCREW

M10 x 1.5 x 30 Hex Cap Screw Grade 5

16шт.

700702319

SCREW

10 Helical Spring Lock Washer

16шт.
