Запчасти Case IH 8450 (018) - IMPLEMENT DRIVELINE, 540 PTO, BONDIOLI, REFER TO PAGE 16 FOR DRIVELINE IDENTIFICATION Driveline

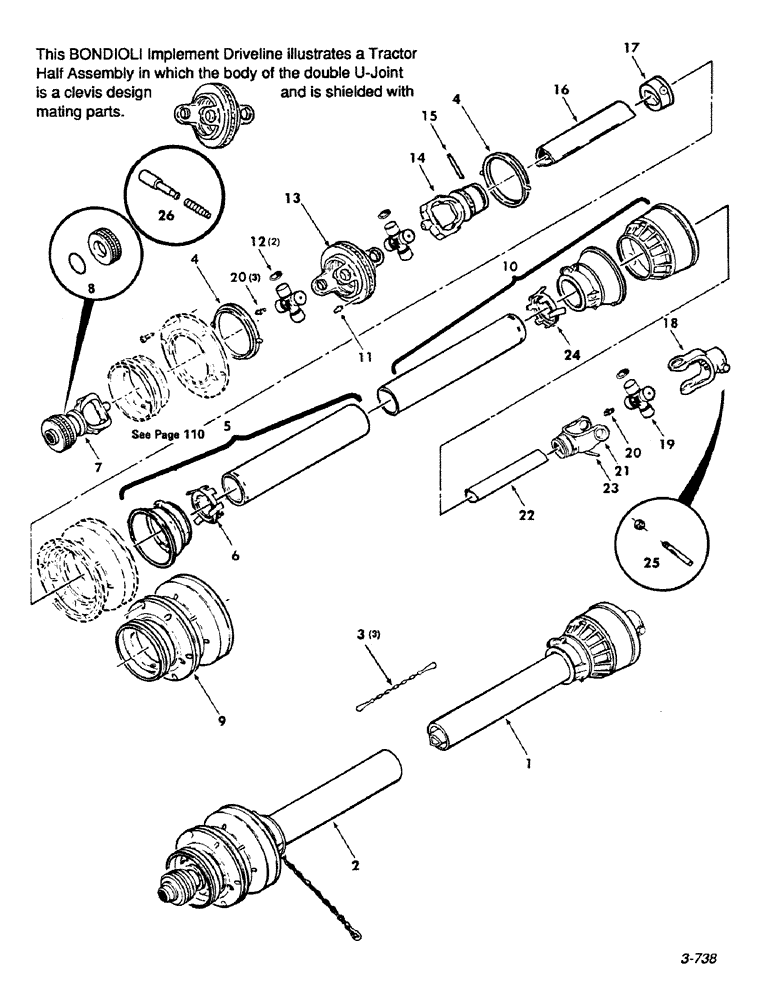

Схема запчастей Case IH 8450 - (018) - IMPLEMENT DRIVELINE, 540 PTO, BONDIOLI, REFER TO PAGE 16 FOR DRIVELINE IDENTIFICATION Driveline
23
25
20
5
2
20
8
13
22
14
6
3
4
16
15
24
12
18
17
26
4
21
1
7
10
11
9
19

Артикул

Название

Примечание

Количество

1

700709855

PTO

Implement Half Assembly

1шт.

2

700709854

PTO

Tractor Half Assembly

1шт.

3

700707183

CHAIN (AG)

Chain - Safety

3шт.

4

700709047

SHIELD

Ring - Bearing (Set of Two)

1шт.

5

700709856

SHIELD

Assembly (Less CV)

1шт.

6

700709189

SNAP RING

Bearing - Shield, Outer

1шт.

7

700709040

FORK

Yoke Assembly - Tractor

1шт.

8

700707181

COLLAR

- and Snap Ring

1шт.

9

700709053

CONE

Shield - CV

1шт.

10

700709858

SHIELD

- Assembly - Implement

1шт.

11

700707187

NIPPLE, LUBE

Zerk

1шт.

12

700709041

CROSS

Journal Repair Kit

2шт.

13

700709042

BODY

- CV

1шт.

14

700709851

FORK

Yoke

1шт.

15

763847

PIN

- Spring

1шт.

16

700709852

TUBE

- Drive, Outer

1шт.

17

700707175

NUT

Collar - Grease

1шт.

18

700709853

FORK

Yoke - Implement

1шт.

19

700707171

CROSS

Journal Repair Kit

1шт.

20

700707193

NIPPLE, LUBE

Zerk

3шт.

21

700707172

TUBE

Yoke - Tube, Inner

1шт.

22

700707173

TUBE

- Drive, Inner

1шт.

23

700707194

PIN

- Spring

1шт.

24

700707188

INNER SHIELD

Bearing - Shield, Inner

1шт.

25

700709860

PIN

- Special, Yoke

1шт.

26

700708790

KIT

Push Pin and Spring

1шт.

Выбрано товаров: 26
