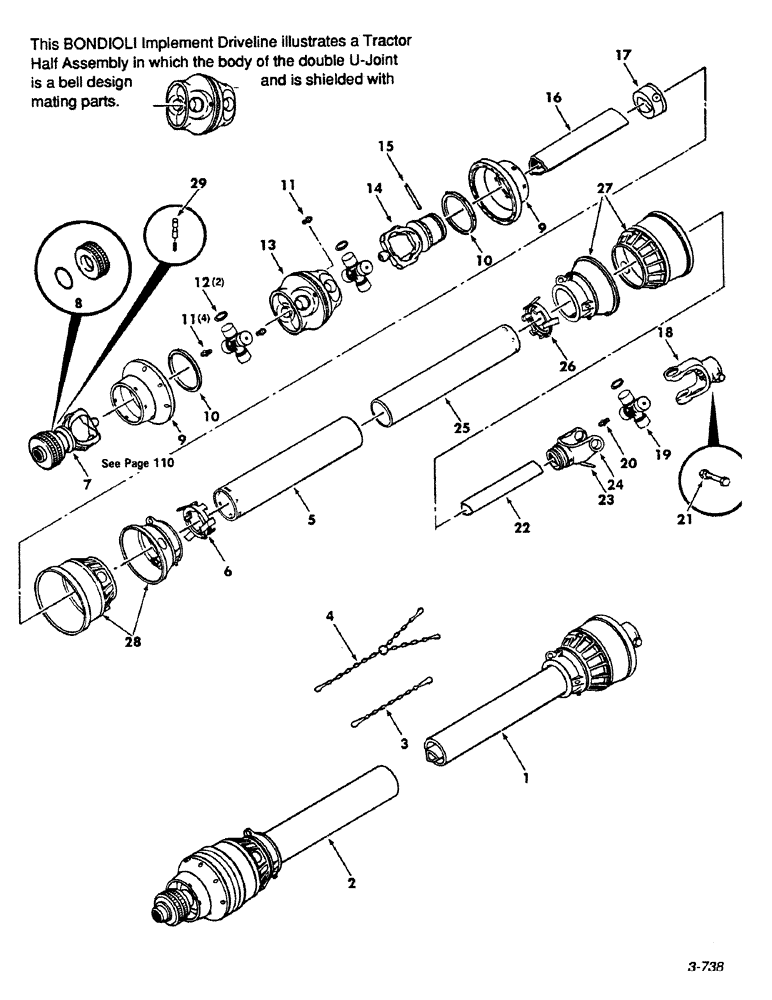

Запчасти Case IH 8450 (016) - IMPLEMENT DRIVELINE, 540 PTO, BONDIOLI, REFER TO PAGE 18 FOR DRIVELINE IDENTIFICATION Driveline

1

700707184

PTO

Implement Half Assembly

1шт.

2

700707185

SHAFT

Tractor Half Assembly

1шт.

3

700707183

CHAIN (AG)

Chain - Safety

1шт.

4

700707192

CHAIN (AG)

Chain - Safety "Y"

1шт.

5

700707180

SHIELD

Tube - Shield, Outer

1шт.

6

700707189

SHIELD

Bearing - Shield, Outer

1шт.

7

700707169

YOKE

- Quick Disconnect

1шт.

8

700707181

COLLAR

- Yoke

1шт.

9

700707191

SHIELD

Cone - Shield

1шт.

10

700707495

NUT

Ring - Bearing

2шт.

11

700707187

NIPPLE, LUBE

Zerk

5шт.

12

700707179

CROSS

Journal Repair Kit

2шт.

13

700707178

BODY

- CVJ

1шт.

14

700707177

FORK

Yoke

1шт.

15

763847

PIN

- Spring

1шт.

16

700707176

TUBE

- Drive, Outer

1шт.

17

700707175

NUT

Ring - Center

1шт.

18

700707170

FORK

Yoke - Clamp

1шт.

19

700707171

CROSS

Journal Repair Kit

1шт.

20

700707193

NIPPLE, LUBE

Zerk

1шт.

21

700707496

SCREW

M12 x 1.75 x 70 C

1шт.

22

700707173

TUBE

- Drive, Inner

1шт.

23

700707194

PIN

- Flexible

1шт.

24

700707172

TUBE

Yoke - Tube, Inner

1шт.

25

700707186

SHIELD

Tube - Shield, Inner

1шт.

26

700707188

INNER SHIELD

Bearing - Shield, Inner

1шт.

27

700709108

SHIELD

- Cone, Implement

1шт.

REF #27 - PART NUMBER 700707108 SHOULD BE 700709108. HW. 12/18/97

1шт.

28

700709107

SHIELD

- Cone, Tractor

1шт.

29

700708790

KIT

Pin - Push

1шт.
