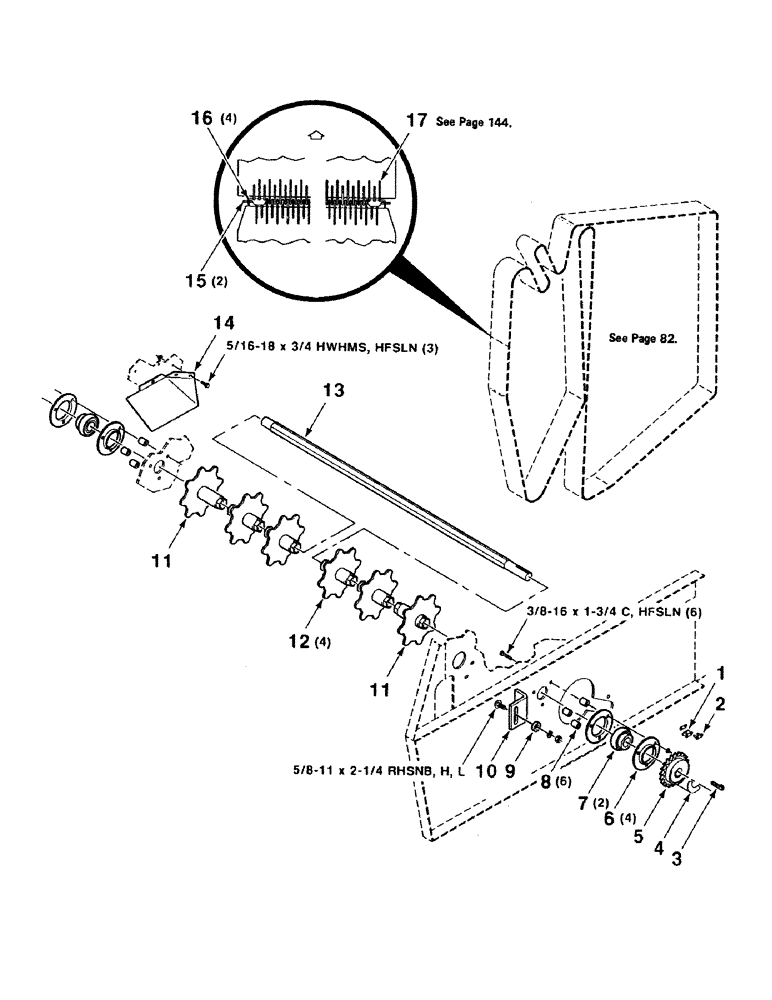

Запчасти Case IH 8450 (138) - POWERED RIENK KIT Decals & Attachments

HK50597

Powered Rienk Kit Complete

1шт.

1

47365

LINK, CONNECTING

Link - Connector

1шт.

2

700711247

LINK

- No. 60 Roller Chain

1шт.

3

61952

KEY

1/4 x 1-3/4 Gib Key

1шт.

4

700711700

DECAL

- Operational

1шт.

5

85951

SPROCKET ASSY.

Sprocket - 60B20 Tooth

1шт.

6

51417

PIPE

- Bearing

4шт.

7

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

- Spherical

2шт.

8

6869382

SPACER

6шт.

9

6229256

SPACER

1шт.

10

700122813

MOUNTING PARTS

Angle - Mounting, Idler

1шт.

11

700126364

DISC

Rienk - Outside

2шт.

12

700125160

DISC

Rienk - Inside

4шт.

13

700125033

SHAFT

- Hex

1шт.

14

700126369

SHIELD

1шт.

15

700710206

PIN,1.73mm OD x 180mm L

- lacing

2шт.

16

700707322

LATCH ASSY.

Fastener

4шт.

17

700707821

BELT

Lacing Kit

1шт.

7701055

LEVER,Hex, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 x 1-3/4 C

6шт.

7870173

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

5/8-11 x 2-1/4 HRSNB

1шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

3шт.
