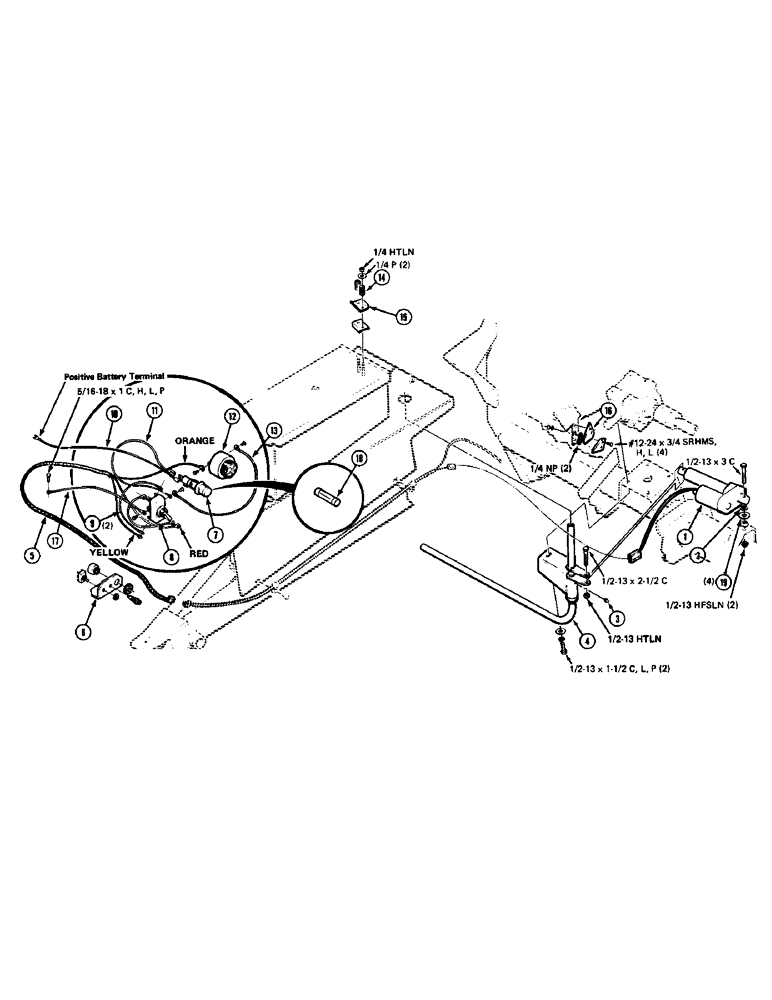

Запчасти Case IH 8440 (25[1]) - THREADER ASSEMBLY, ACTUATOR ASSEMBLY (14) - BALE CHAMBER

1

700705139

ACTUATOR

1шт.

2

323725

SPACER

7/32" long

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

4

6549802

TUBE

1шт.

5

1700012

HARNESS

WIRING HARNESS, 159" long

1шт.

6

6864052

BRACKET

1шт.

7

7020480

BOX, FUSE

FUSE HOLDER

1шт.

8

7723372

SWITCH

with wire attachment screws

1шт.

9

722355

CABLE

ELECTRIC WIRE, 4" long (14 ga. red)

2шт.

10

1712421

ELECTRICAL WIRE

ELECTRIC WIRE, 60" long (14 ga. brown)

1шт.

11

7723562

ELECTRICAL WIRE

ELECTRIC WIRE, 4" long (12 ga. red)

1шт.

12

8020638

INDICATOR

- audio

1шт.

13

7023138

NEG BATTERY CABLE

ELECTRIC WIRE, 8" long (14 ga. black)

1шт.

14

58925

SPRING

2шт.

15

6549869

SUPPORT

BRACKET - tension

2шт.

16

700122888

CUTTER

SECTION

2шт.

17

7023393

ELECTRICAL WIRE

8" long (14 ga. black)

1шт.

18

7720022

FUSE

30 amp

1шт.

19

52886

WASHER

1/2 x 14 GAUGE MACHINERY BUSHING

4шт.

70243

SCREW

NO. 12-24 x 3/4 ROUND HEAD MACHINE SCREW

4шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 HEX CAP SCREW GRADE 5

2шт.

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 x 1 HEX CAP SCREW GRADE 5

1шт.

704858

LOCK NUT

1/2-13 HEX TOP LOCK NUT

1шт.

705707

WASHER,1/4", SAE

1/4 NARROW PLAIN WASHER

2шт.

7702038

SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 x 3 HEX CAP SCREW GRADE 5

1шт.

7703531

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

1/2-13 x 2-1/2 HEX CAP SCREW GRADE 5

1шт.

704858

LOCK NUT

1/2-13 HEX TOP LOCK NUT

2шт.

230-4114

NUT,1/4"-20, GA

1/4-20 HEX TOP LOCK NUT

2шт.

700705139

ACTUATOR

- linear, complete

1шт.
