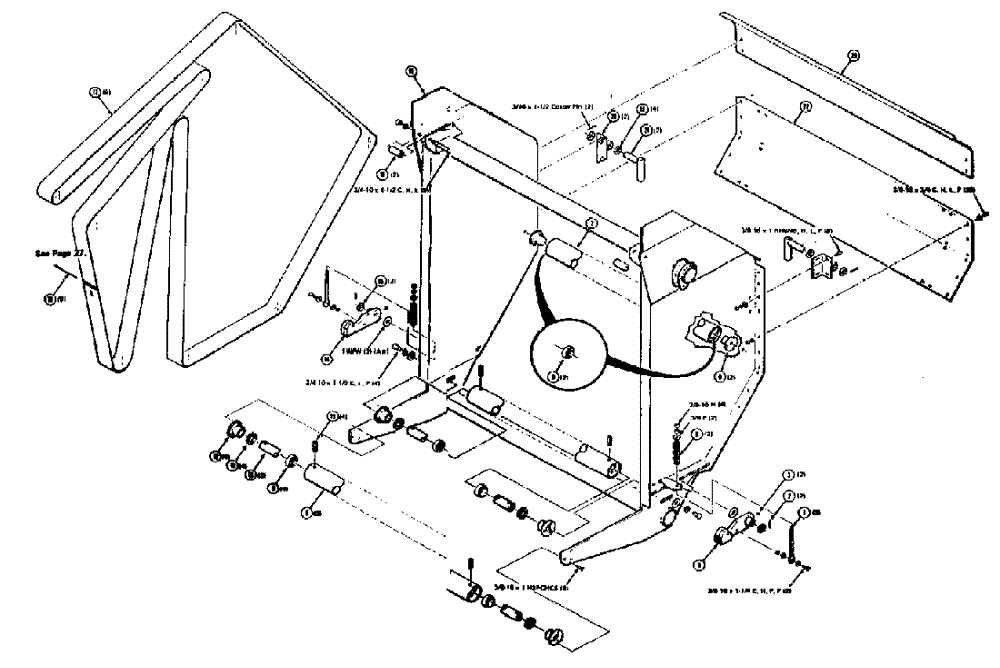

Запчасти Case IH 8440 (20[1]) - FORMING ASSEMBLY (14) - BALE CHAMBER

1

484816

SPECIAL BOLT,3/8" - 16 x 8 1/2"

DRAWBOLT

2шт.

2

63107

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, LOCK, 1/4" x 1 1/2", Slotted

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

4

6548945

LATCH

left

1шт.

5

7758402

COMPRESSION SPRING

SPRING - compression

2шт.

6

700100927

HUB

- spherical

2шт.

7

6864607

ROLLER

1шт.

8

6548994

ROLLER

2шт.

9

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- without collar

6шт.

10

6549117

SHAFT

- roller

2шт.

11

52712

BUSHING

1-1/2 x 18 G MACHINE BUSHING

4шт.

12

6549125

WASHER

HUB, roller

4шт.

13

63198

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

2шт.

14

6548952

LATCH

right

1шт.

15

52258

BUSHING

1-14 GAUGE MACHINERY BUSHING

6шт.

16

828368

PIN

Lacing

9шт.

17

700702917

BELT,101.60 mm W x 11506.00 mm L

Flat 101.60 mm W x 11506.00 mm L

9шт.

18

6549166

BUSHING

2-3/4" long

2шт.

19

1661309

GRATE

TAILGATE

1шт.

20

6549224

MOUNTING PARTS

MOUNT

2шт.

21

6538771

PIVOT

2шт.

22

6864649

SHIELD

1шт.

23

6864698

SHIELD

1шт.

700047

BOLT

3/8-16 x 1 ROUND HEAD SQUARE NECK BOLT GRADE 5

8шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 HEX CAP SCREW GRADE 5

2шт.

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 HEX CAP SCREW GRADE 5

20шт.

703850

HEX SOC SCREW,Flat Hd, 3/8"-16 x 1"

3/8-16 x 1 HEX SOCKET FLAT COUNTERSUNK HEAD CAP SCREW

6шт.

705574

WASHER,1 1/8" x 2" x .156", HDN

2шт.

7703572

BOLT,Hex 3/4" - 10 x 1 1/2", Gr 5

3/4-10 x 1-1/2 HEX CAP SCREW GRADE 5

4шт.

7701527

SCREW,Hex, 3/4" - 10 x 4 1/2", Gr 5

3/4-10 x 4-1/2 HEX CAP SCREW GRADE 5

2шт.
