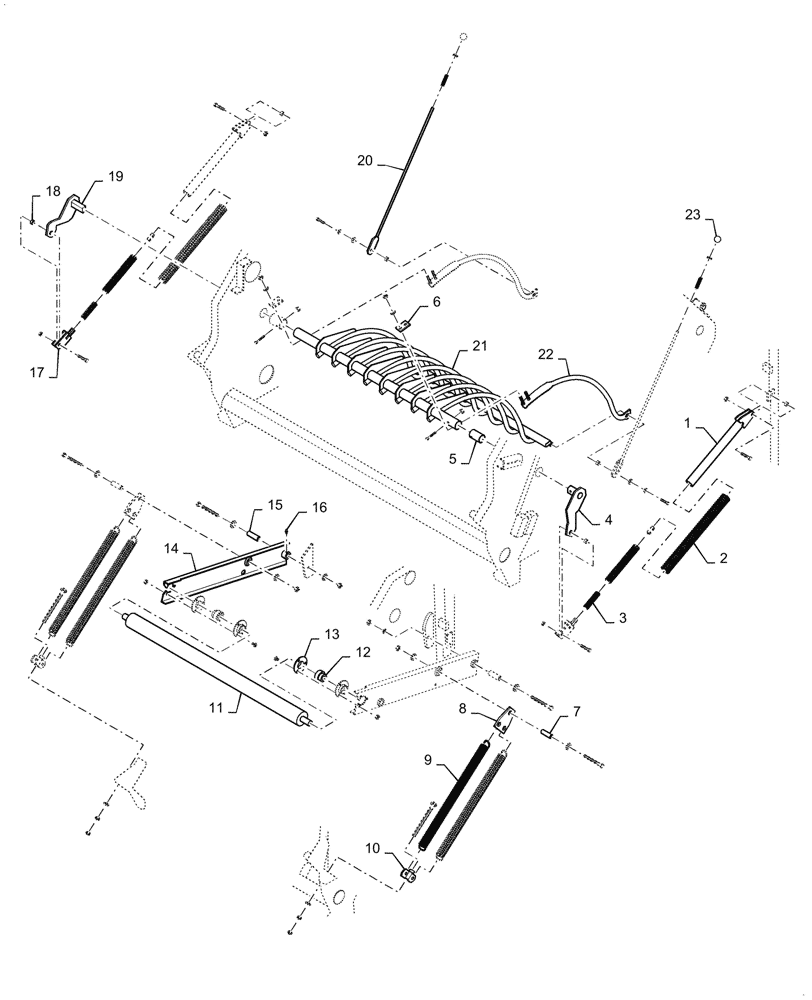

Запчасти Case IH 8440 (16[1]) - TENSION ASSEMBLY (14) - BALE CHAMBER

1

6469811

PIPE

2шт.

2

7058126

SPRING

- compression

2шт.

3

758961

SPRING

2шт.

4

6548424

ARM ASSY.

ARM - left

1шт.

5

6548721

BUSHING

2-5/8 I.D. x 3-15/16" long

2шт.

6

6566145

STRAP

SHAFT

2шт.

7

216937

FRAME

5/8" I.D. x 2-1/2" long

2шт.

8

1661320

SPRING

ANCHOR - spring

2шт.

9

7058910

SPRING

4шт.

10

6488639

STRAP

2шт.

11

6548085

ROLLER

1шт.

12

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - spherical

2шт.

13

617863R1

FLANGED BEARING

4шт.

14

1661319

ARM/LIFTING DEVICE

ARM

1шт.

15

6548697

BUSHING

3/4 I.D. x 3-3/8" long

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

17

6566038

ROD

2шт.

18

6472351

BUSHING

5/8 I.D. x 17/32" long

6шт.

19

6548432

ARM ASSY.

ARM - right

1шт.

20

6548549

ROD

2шт.

21

6548358

GRATE ASSY.

GRID

1шт.

22

6566111

PIPE

1шт.

23

7894553

KNOB

2шт.

772418

BOLT,Hex, 5/16" x 3 1/2", Gr 5

5/16-18 x 3-1/2 HEX CAP SCREW GRADE 5

2шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 HEX CAP SCREW GRADE 5

2шт.

703983

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 HEX CAP SCREW GRADE 5

4шт.

773374

BOLT,Hex, 1/2" x 3 1/2", Gr 5

1/2-13 x 3-1/2 HEX CAP SCREW GRADE 5

2шт.

7701733

SPECIAL BOLT

5/8-11 x 6 FULL THREAD HEX CAP SCREW GRADE 5

2шт.

703660

BOLT,Hex 3/4" - 10 x 5", Gr 5

3/4-10 x 5 HEX CAP SCREW GRADE 5

2шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 ROUND HEAD SQUARE NECK BOLT GRADE 5

6шт.

704635

NUT

3/8-16 HEX CENTER LOCK NUT

4шт.

704163

LOCK NUT

5/16-18 HEX TOP LOCK NUT

2шт.

704858

LOCK NUT

1/2-13 HEX TOP LOCK NUT

6шт.
