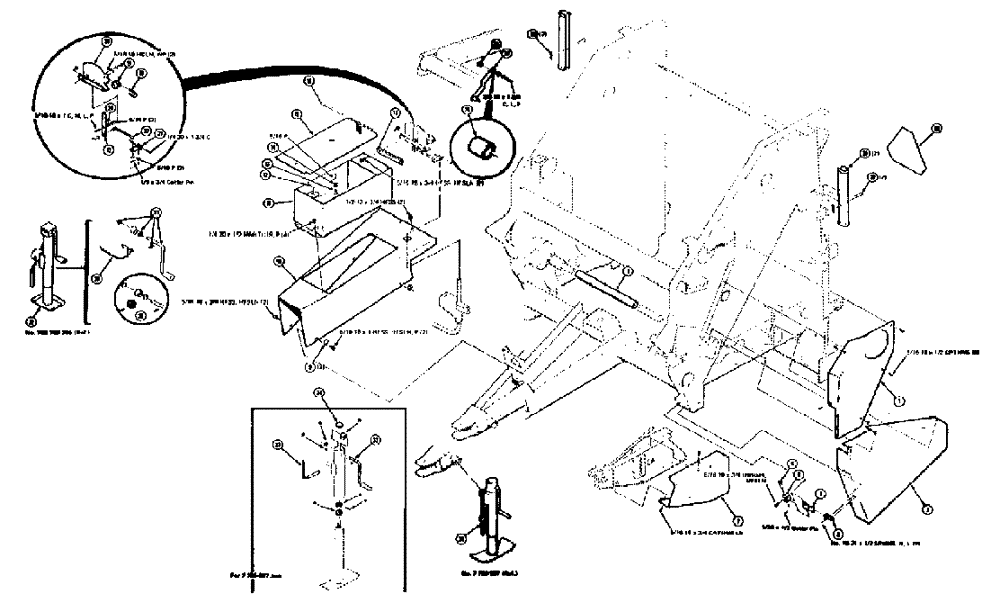

Запчасти Case IH 8440 (18[1]) - SHIELDS ASSEMBLY (12) - MAIN FRAME

1

6549646

SHIELD

1шт.

2

6549653

SHIELD

1шт.

3

7025075

BRACKET

- hood

1шт.

4

776682

HOOK

RUBBER - hook

1шт.

5

776674

SUPPORT

BRACKET - anchor

1шт.

6

63784

CLEVIS PIN

1/4 x 1-1/2 CLEVIS PIN

1шт.

7

6549679

SHIELD

- pickup

1шт.

8

6549638

SHIELD

1шт.

9

700708090

CLAMP

- hose

2шт.

10

6549596

SHIELD

- PTO

1шт.

11

6549687

TERMINAL BOX

BOX - twine

1шт.

12

7894967

HANDLE

1шт.

13

7894975

CLIP

1шт.

14

7758212

SPRING

1шт.

15

6549604

COVER ASSY

COVER

1шт.

16

6549620

PIN

- hinge

1шт.

17

51200831

HINGE

1шт.

18

51200861

U-BOLT

5/16-18 thread

1шт.

19

7745003

GUIDE

1шт.

20

6549737

PLATE

- gauge

1Jшт.

21

6549745

BRACKET

1шт.

22

6549752

ROD

1шт.

23

6549729

GAUGE

1шт.

24

159806

SPACER

1/4" long

1шт.

25

740787

BRONZE BUSHING

3/4 I.D. x 1" long

1шт.

26

147306

BUSHING

SPACER, 1-1/16" long

1шт.

27

6549760

BRACKET

1шт.

28

S120261

PIN

.149 HAIR PIN COTTER

2шт.

29

6546469

STOP

2шт.

30

63644

CLEVIS PIN

3/8 x 2-1/8 CLEVIS PIN

2шт.

31

7753957

JACK

1шт.

700709385

JACK

1шт.

32

755975

CRANK

HANDLE ASSEMBLY - jack, for 7753957 jack

1шт.

33

756007

PIN

- jack, for 7753957 jack

1шт.

7753858

PACKAGE, REPAIR

JACK REPAIR KIT, Includes items in art marked with asterisks, for 7753957

1шт.

34

8804338

CAP

dust

1шт.

35

7793355

EMBLEM, SMV

1шт.

36

700709409

LINK CHAIN

PIN AND CHAIN ASSEMBLY for, for 700709385 jack

1шт.

37

700702060

CRANKED HANDLE

CRANK KIT, for 700709385 jack

1шт.

38

700702059

KIT

GEAR SET, for 700709385 jack

1шт.

703132

SERRATED SCREW

5/16-18 x 3/4 HEX FLANGE SERRATED SCREW

4шт.

703140

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

1/4-20 x 1-3/4 HEX CAP SCREW GRADE 5

1шт.

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 x 1 HEX CAP SCREW GRADE 5

1шт.

704619

SUPPORT

5/16-18 HEX CENTER LOCK NUT

2шт.

704783

SHIM,.020" Thk

1/4-20 HEX CENTER LOCK NUT

1шт.

7701055

LEVER,Hex, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 x 1-3/4 HEX CAP SCREW GRADE 5

1шт.

7771272

BOLT,Hex Serr, 1/2" - 13 x 3/4"

1/2-13 x 3/4 HEX FLANGE SERRATED SCREW

2шт.

7772049

BOLT,Hex Serr, 5/16" - 18 x 1"

5/16-18 x 3/4 HEX FLANGE SERRATED SCREW

2шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HEX WASHER HEAD MACHINE SCREW

1шт.
