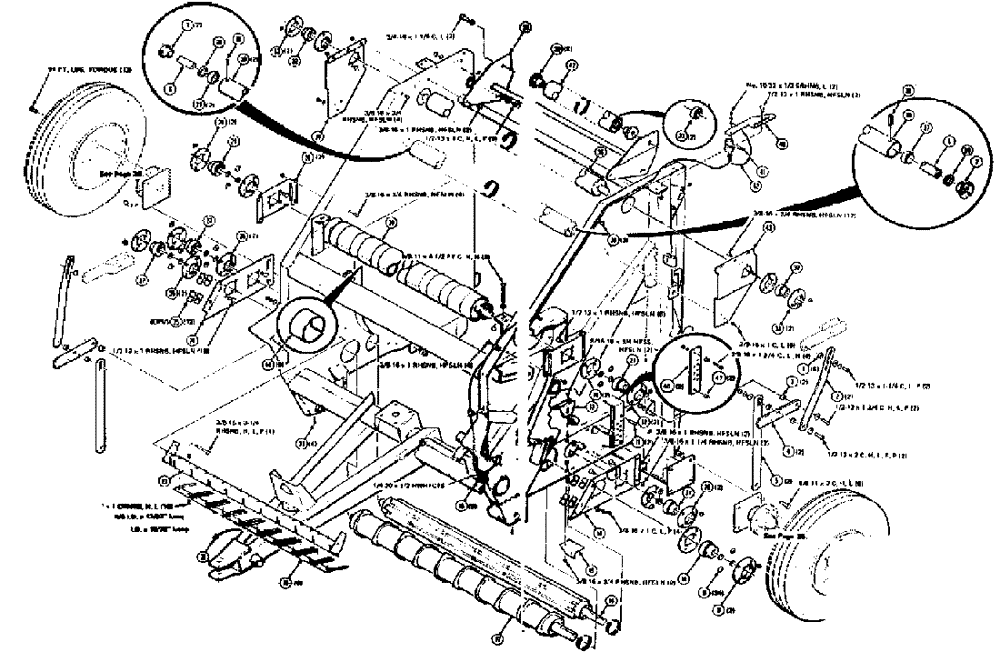

Запчасти Case IH 8440 (14[1]) - MAIN FRAME ASSEMBLY (12) - MAIN FRAME

1

6287155

SPACER

5/8 I.D. x 13/32" long

6шт.

2

6546493

STRAP

2шт.

3

6472351

BUSHING

5/8 I.D. x 19/32" long

2шт.

4

6546949

STRAP

- gauge

2шт.

5

1661308

STRAP

- lift

2шт.

6

6549117

SHAFT

- roller

2шт.

7

6549125

WASHER

HUB - roller

4шт.

8

714360

FLANGED BEARING

FLANGE - bearing

2шт.

9

7852213

SHIM

24шт.

10

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING - spherical

1шт.

11

763789

CLEVIS PIN

1/2 x 1-3/4 CLEVIS PIN

2шт.

12

S120261

PIN

.149 x 2-3/4 HAIR PIN COTTER

2шт.

13

6549877

SUPPORT

- idler

1шт.

14

6548622

MOUNTING PARTS

MOUNT - bearing, left

1шт.

15

6548713

BRACKET

STOP - idler, bracket

1шт.

16

6548226

ROLLER

rear, lengthwise pieces attached

1шт.

17

6548317

ROLLER

front, banded

1шт.

18

751628

CLAMP

3шт.

19

6565980

GUIDE

- belt

9шт.

20

52712

BUSHING

1-1/2 x 18 GAUGE MACHINERY BUSHING

4шт.

21

1712439

HARNESS

- wiring, 187' long

1шт.

22

6565964

SCRAPER

BRACKET - scraper

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

24

6548655

MOUNTING PARTS

MOUNT - bearing, right

1шт.

25

6546402

SHIM

12шт.

26

50575

FLANGE

- bearing

10шт.

27

50468

SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 22, 43.66 mm

- spherical

5шт.

28

6548689

MOUNTING PARTS

MOUNT - bearing

2шт.

29

700100017

ROLLER ASSY.

ROLLER - assembly

1шт.

30

6548994

ROLLER

2шт.

31

6565949

MOUNTING PARTS

MOUNT - bearing, right

1шт.

32

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING spherical, see 571588R92 bearing and 517645R11 collar

2шт.

33

51417

PIPE

- bearing

4шт.

34

700100922

MOUNTING PARTS

MOUNTING - upper roller

1шт.

35

6548036

ROLLER

1шт.

36

63198

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

4шт.

37

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- spherical (without collar)

4шт.

38

722496

CLIP

- wiring

3шт.

39

700100927

HUB

- bearing

2шт.

40

1661323

MOUNTING PARTS

MOUNT - switch

1шт.

41

1711936

SWITCH

bale full, see Figure 25 for alarm that activates it.

1шт.

42

1712413

ELECTRICAL WIRE

WIRE - electrical, orange, 14 gauge, 4-3/4" long

1шт.

43

6565931

MOUNTING PARTS

MOUNT - bearing - left

1шт.

44

7827728

BELT,101.60 mm W x 505.00 mm L

Lapping 101.60 mm W x 505.00 mm L

9шт.

45

6864607

ROLLER

1шт.

46

6547467

STRAP

2шт.

47

296913

SPACER

4шт.

873877

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5

3/4-10 x 1-1/4 HEX CAP SCREW GRADE 5

2шт.

70714

SCREW

3/8-16 x 1 CROSS RECESS HEAD MACHINE SCREW

18шт.

7770498

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/4", Gr 5

3/8-16 x 3-1/4 ROUND HEAD SQUARE NECK BOLT GRADE 5

4шт.

7700131

SHROUD,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 ROUND HEAD SQUARE NECK BOLT GRADE 5

26шт.

703132

SERRATED SCREW

5/16-18 x 3/4 HEX FLANGE SERRATED SCREW

2шт.

701607

BRACKET

1/4-20 x 1/2 HEX WASHER HEAD THREAD CUTTING TAPPING SCREW

1шт.

706382

SCREW

NO. 10-32 x 1/2 SLOTTED ROUND HEAD MACHINE SCREW

2шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex cap screw grade 5

10шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 x 1 HEX CAP SCREW GRADE 5

2шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 HEX CAP SCREW GRADE 5

2шт.

703983

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 HEX CAP SCREW GRADE 5

2шт.

7701675

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 x 2 HEX CAP SCREW GRADE 5

2шт.

7701949

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 HEX CAP SCREW GRADE 5

8шт.

873752

HARDWARE,Hex, 5/8" - 11 x 4 1/2", Gr 5, Full Thd

5/8-11 x 4-1/2 FULL THREAD HEX CAP SCREW GRADE 5

2шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 ROUND HEAD SQUARE NECK BOLT GRADE 5

22шт.

700047

BOLT

3/8-16 x 1 ROUND HEAD SQUARE NECK BOLT GRADE 5

8шт.

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 ROUND HEAD SQUARE NECK BOLT GRADE 5

2шт.

68767

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 3/4", G5

3/8-16 x 1-3/4 HEX CAP SCREW GRADE 5

4шт.
