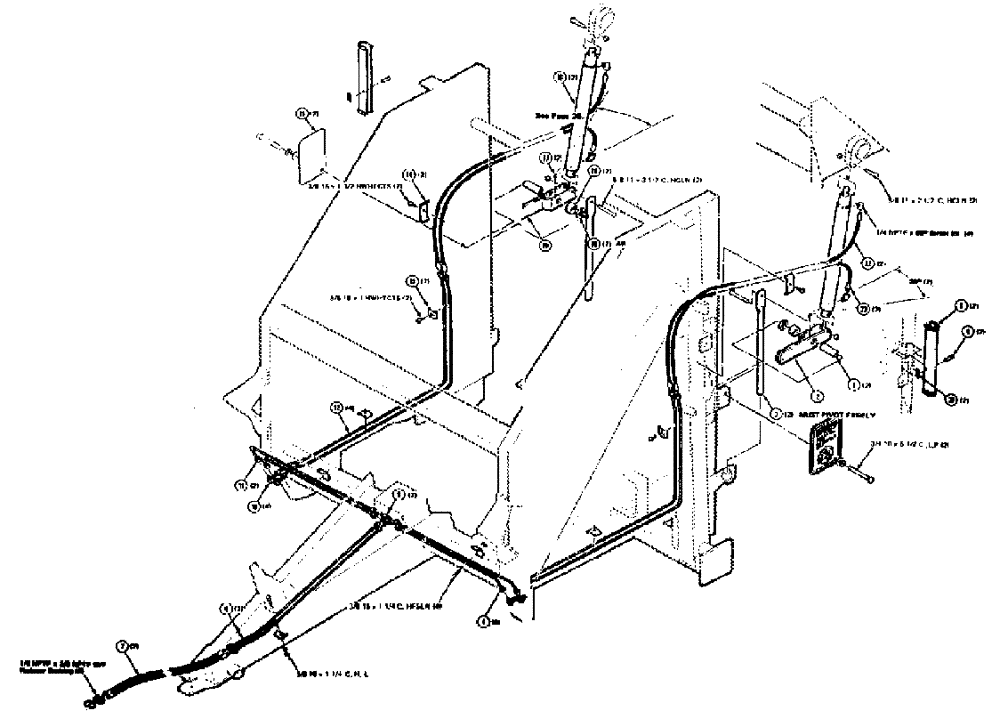

Запчасти Case IH 8440 (12[1]) - HYDRAULIC ASSEMLY (07) - HYDRAULICS

1

6549547

SPACER

13/16 I.D. x 3-19/32" long

2шт.

2

6549489

MOUNTING PARTS

MOUNT - left

1шт.

3

6549554

PIPE

- lock trip

2шт.

4

7892326

TUBE ASSY.,9.53" OD, 750, 90 mm Length

LINE - hydraulic, 9/16-18 JIC (2) F/F, 72" long

2шт.

5

6546469

STOP

- safety

2шт.

6

63644

CLEVIS PIN

3/8 x 2-1/8 CLEVIS PIN

2шт.

7

7073729

HYDRAULIC HOSE,0.38" ID x 52.00", SAE 100R1

HOSE - hydraulic, 9/16-18 JIC x 3/8-18 NPTF, M/M, 52" long

2шт.

8

7892318

TUBE ASSY.,9.53 mm OD, 830, 180 mm Length

LINE - hydraulic, 9/16-18 JIC (2) F/F, 39-3/4" long

2шт.

9

746743

TEE

9/16-18 JIC (3) FEMALE FLARED TEE

2шт.

10

791038

ELBOW

9/16-18 JIC x 9/16-18 JIC M/M x 90deg. ELBOW

4шт.

11

7892300

TUBE ASSY.,9.53 mm OD, 776, 115 mm Length

LINE - hydraulic, 9/16-18 JIC (2) F/F, 35" long

2шт.

12

7892334

TUBE ASSY.

LINE - hydraulic, 9/16-18 JIC (2) F/F, 34-1/4" long, pipe length from end to end is approx. 6 feet

4шт.

13

6251375

CLAMP

- line, hydraulic

7шт.

14

6251367

CLAMP

- hose, hydraulic

2шт.

15

6514863

PLATE

- decal, danger

2шт.

16

7892284

CYLINDER

- hydraulic

2шт.

17

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1/4-28 x 90deg. ZERK

2шт.

18

6549588

SPACER

1-5/16 I.D. x 1" long

2шт.

19

6549497

MOUNTING PARTS

MOUNT - right

1шт.

20

52324

BUSHING

1-1/4 x 10 GAUGE MACHINERY BUSHING

2шт.

21

62349

LOCK WASHER

.149 HAIR PIN COTTER

2шт.

22

7892292

HOSE ASSY.

HOSE - hydraulic 9/16-18 JIC x 1/4-18 NPTF, M/M, 42-1/8" long

2шт.

23

8742470

HYDRAULIC HOSE,6.35 mm ID x 800.00 mm, SAE 100R1 TYPE - T

1/4 NPTF x 9/16-18 JIC 6.35 mm ID x 800.00 mm, SAE 100R1 TYPE - T

2шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 HEX CAP SCREW GRADE 5

5шт.

7701659

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 x 2-1/2 HEX CAP SCREW GRADE 5

2шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

5/8-11 x 3-1/2 HEX CAP SCREW GRADE 5

2шт.

7883002

BOLT,Hex 3/4" - 10 x 5 1/2", Gr 5

3/4-10 x 5-1/2 HEX CAP SCREW GRADE 5

2шт.

704700

SUPPORT

5/8-11 HEX CENTER LOCK NUT

4шт.
